UNC, Hex-Bolt

UNC 7/16" Hex Bolt and Set Screws A2 304 Stainless Steel

UNC 7/16" Hex Bolt and Set Screws A2 304 Stainless Steel

Ordinarie pris £4.56 GBP
Ordinarie pris £0.00 GBP Försäljningspris £4.56 GBP
Rea Slutsåld
Skatter ingår. Frakt beräknas i kassan.
No. of Items in Pack
Length (inches)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

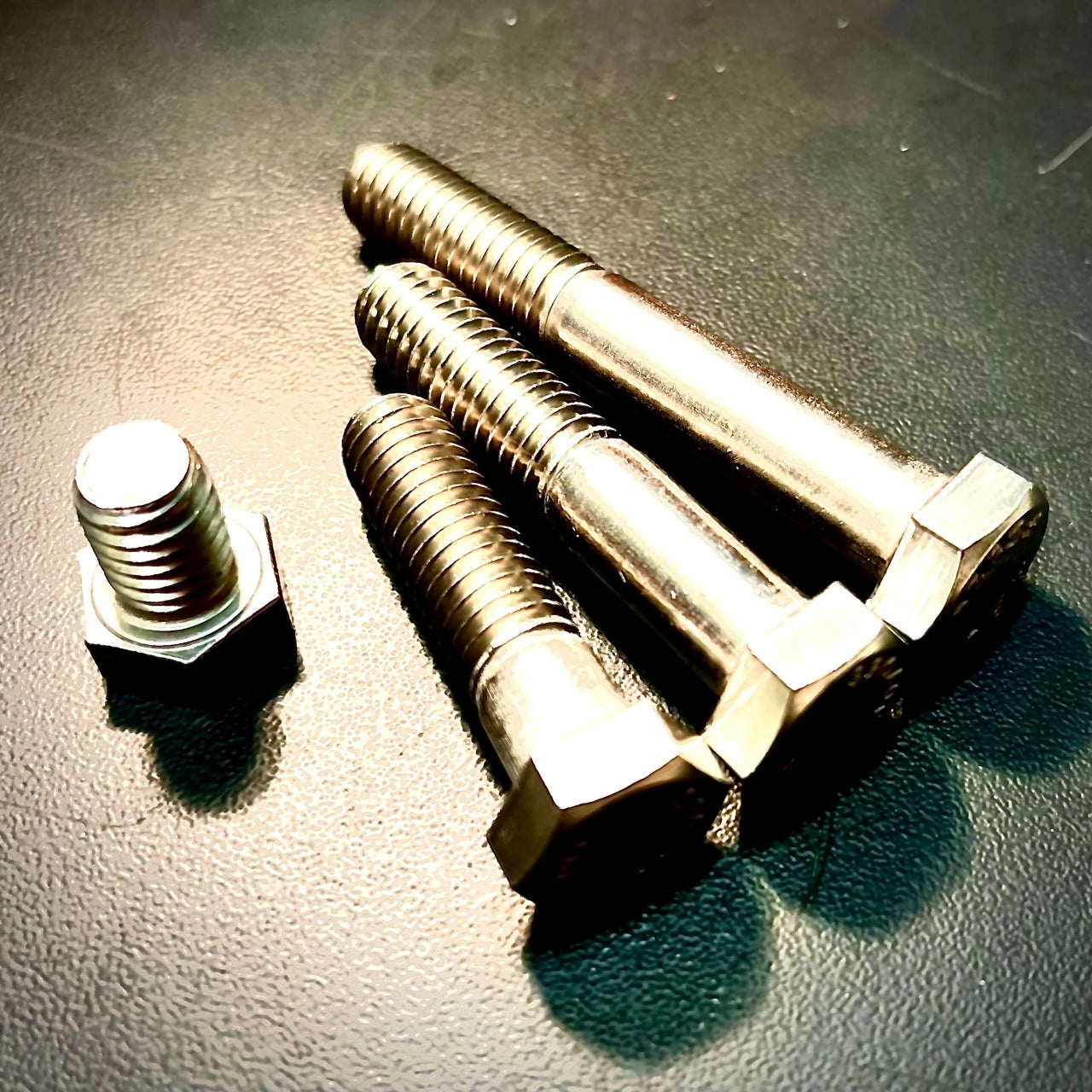

UNC 7/16", Hexagon Bolts and Hexagon Set Screws in A2/ 304 Stainless Steel, DIN 931

14 t.p.i - UNC 7/16", Hexagon Bolts and Hexagon Set Screws  A2/ 304 Stainless Steel.

Hexagon Head Bolt

Bolt is the term used for a partially threaded fastener (bolt with shoulder/ part plain shank bolt), with a head; designed to be used with a nut and washer.



Orders placed before 2pm are dispatched same day (Mon-Fri) and free shipping is Royal Mail, 2nd Class (2-5 days). Postage upgrades available at checkout.

Please make your, 'No. of Items in Pack', 'Length' and, 'Quantity' of packs selection from the drop down menus.



If the size you need isn't shown, please make inquires.

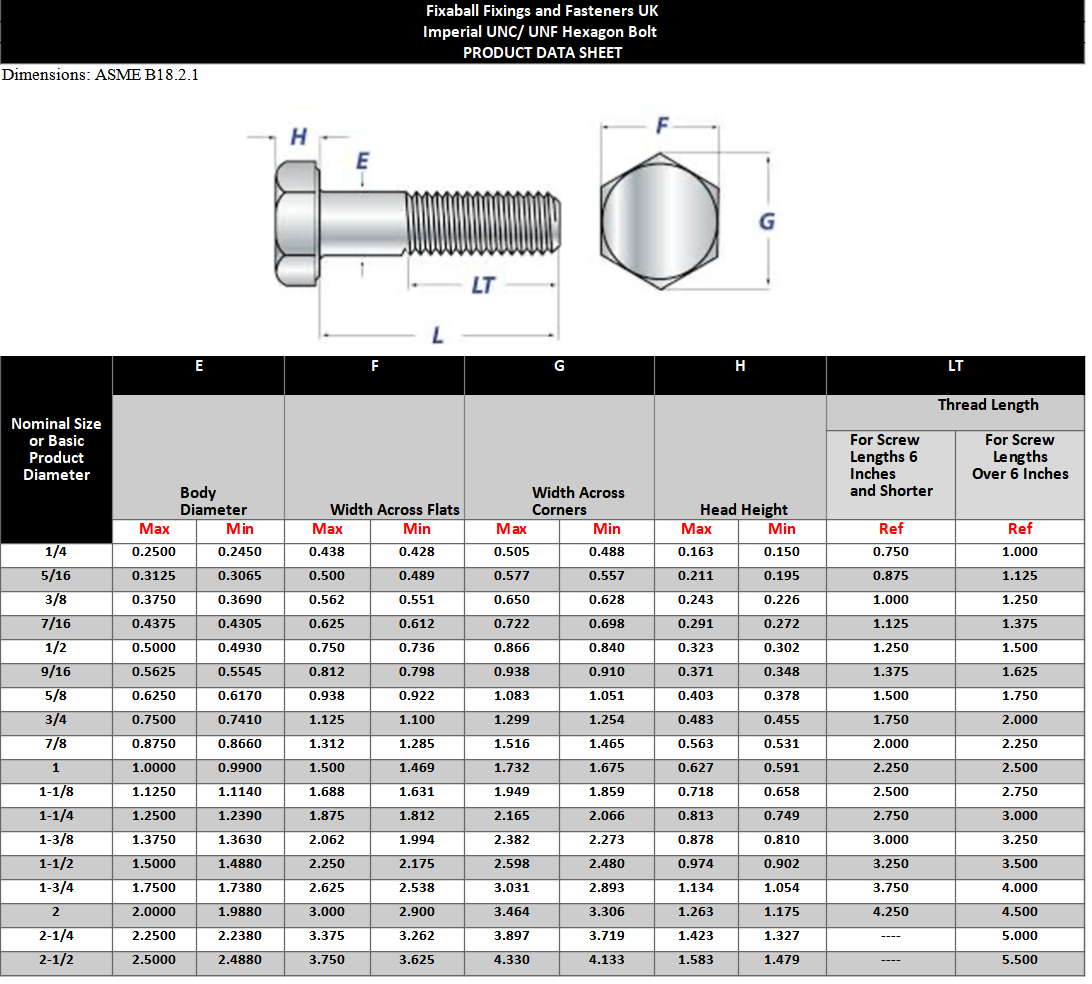

UNC 7/16", Hex Bolts and Hex Set Screws, A2/ 304 Stainless Steel Lengths Available

(Fully Threaded - FT, Partially Threaded - PT)

7/16"-14x3/4",(FT) UNC HEXAGON BOLT UNC STAINLESS A2 (18-8)
7/16"-14x1",(FT) UNC HEXAGON SET SCREW UNC STAINLESS A2 (18-8)
7/16"-14x1 1/4",(FT) UNC HEXAGON SET SCREW UNC STAINLESS A2 (18-8)
7/16"-14x1 1/2",(FT) UNC HEXAGON SET SCREW UNC STAINLESS A2 (18-8)
7/16"-14x2",(PT) UNC HEXAGON BOLT UNC STAINLESS A2 (18-8)
7/16"-14x2 1/2",(PT) UNC HEXAGON BOLT UNC STAINLESS A2 (18-8)
*7/16"-14x3",(PT) UNC HEXAGON BOLT UNC STAINLESS A2 (18-8)
*7/16"-14x3 1/4",(PT) UNC HEXAGON BOLT UNC STAINLESS A2 (18-8)
7/16"-14x3 1/2",(PT) UNC HEXAGON BOLT UNC STAINLESS A2 (18-8)
*7/16"-14x3 3/4",(PT) UNC HEXAGON BOLT UNC STAINLESS A2 (18-8)
7/16"-14x4",(PT) UNC HEXAGON BOLT UNC STAINLESS A2 (18-8)
7/16"-14x5",(PT) UNC HEXAGON BOLT UNC STAINLESS A2 (18-8)

   *Request lengths

Bolt vs Set

A Hex Bolt is the term used for a partially threaded fastener, with a hexagon head; designed to be used with a nut and washer. A Hex Set (Screw Bolt) is the same, except it is fully threaded.

Bolt vs Screw

A screw screws into something, a bolt joins several things together from both sides of materials joined.  Both a screw and bolt's length is measured from the underside of the head to the end of the fastener.

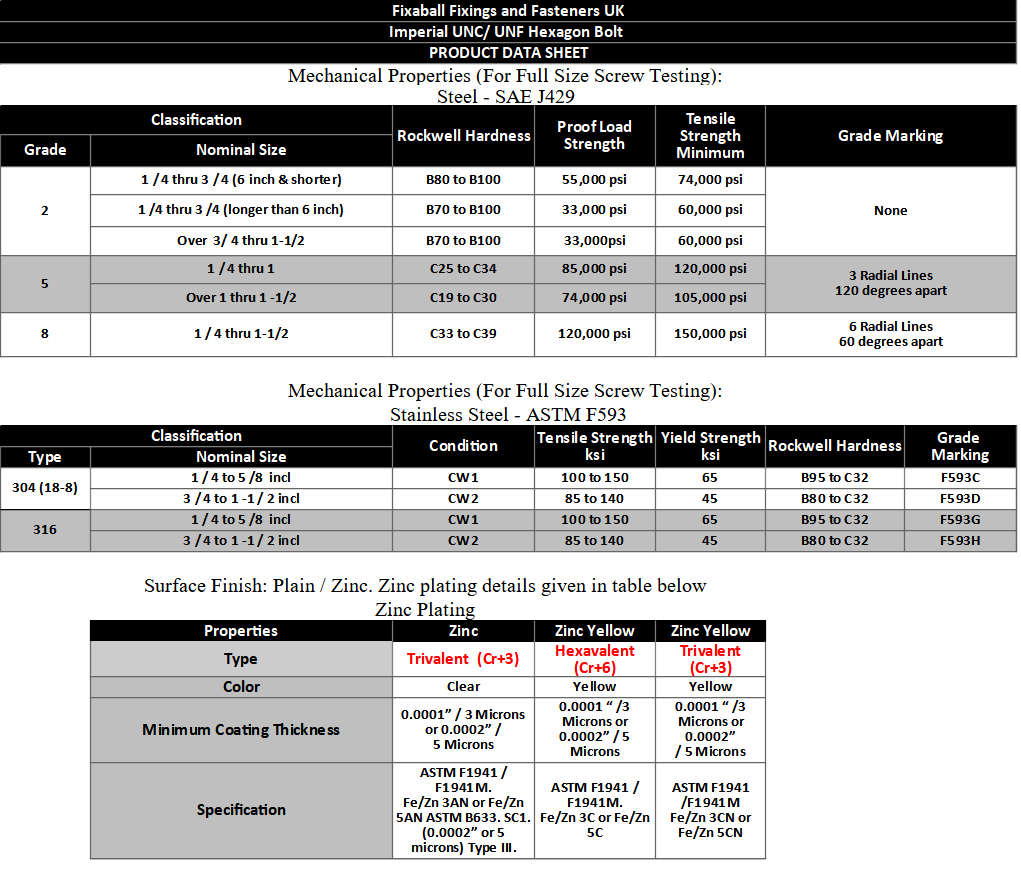

A2/ 304 Stainless Steel

A2, otherwise known as 304 Stainless Steel is the regular stainless standard. It can resist intermittent weathering without corroding and loosing it's metallic finish.

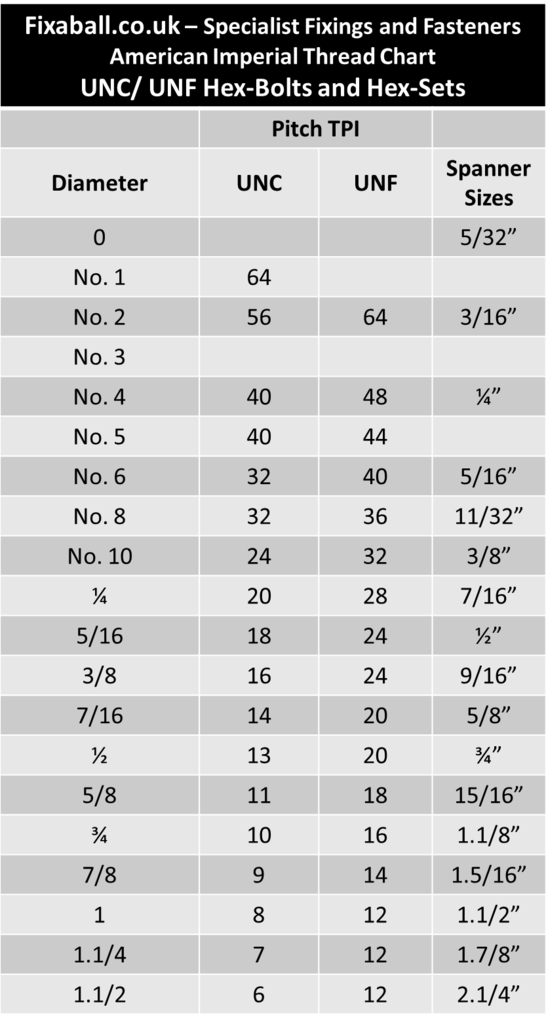

UNIFIED THREAD STANDARDS

Thread standards agreed upon by standard bodies of Canada, the United Kingdom, and the United States.

Unified National Coarse (UNC) is a thread form with a 60 degree flank angle rounded roots and flat crests. For a given diameter it has a larger thread pitch than an equivalent diameter UNF thread. The unified thread is based on inch sizes and was first standardised in 1948 unifying the Whitworth and American standard thread forms.



Unified National (UN) thread form with a rounded root contour, applies only to external threads. (The UN thread form has a flat, or optionally, a rounded root contour.) The majority of fasteners with a Unified thread form (UNC, UNF) have a rounded root contour i.e. are UNR threads.
