UNC, Hex-Bolt

UNC 3/8" x Up to 7.1/2" Hex Bolt Set Screw H T 8.8 Self Colour

UNC 3/8" x Up to 7.1/2" Hex Bolt Set Screw H T 8.8 Self Colour

Ordinarie pris £4.22 GBP
Ordinarie pris £0.00 GBP Försäljningspris £4.22 GBP
Rea Slutsåld
Skatter ingår. Frakt beräknas i kassan.
No. of Items in Pack
Length (inches)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

UNC, 3/8" up to 7.1/2", Fully Threaded Hex-Sets and Partially Threaded Hex Bolts, High Tensile (5/ 8.8), Self-Colour/ Black

UNC 3/8" has 16 T. P. I (Threads Per Inch)

Fixaball sells UNC, 3/8" x up to 7.1/2", Hex Bolts and Hex Sets.

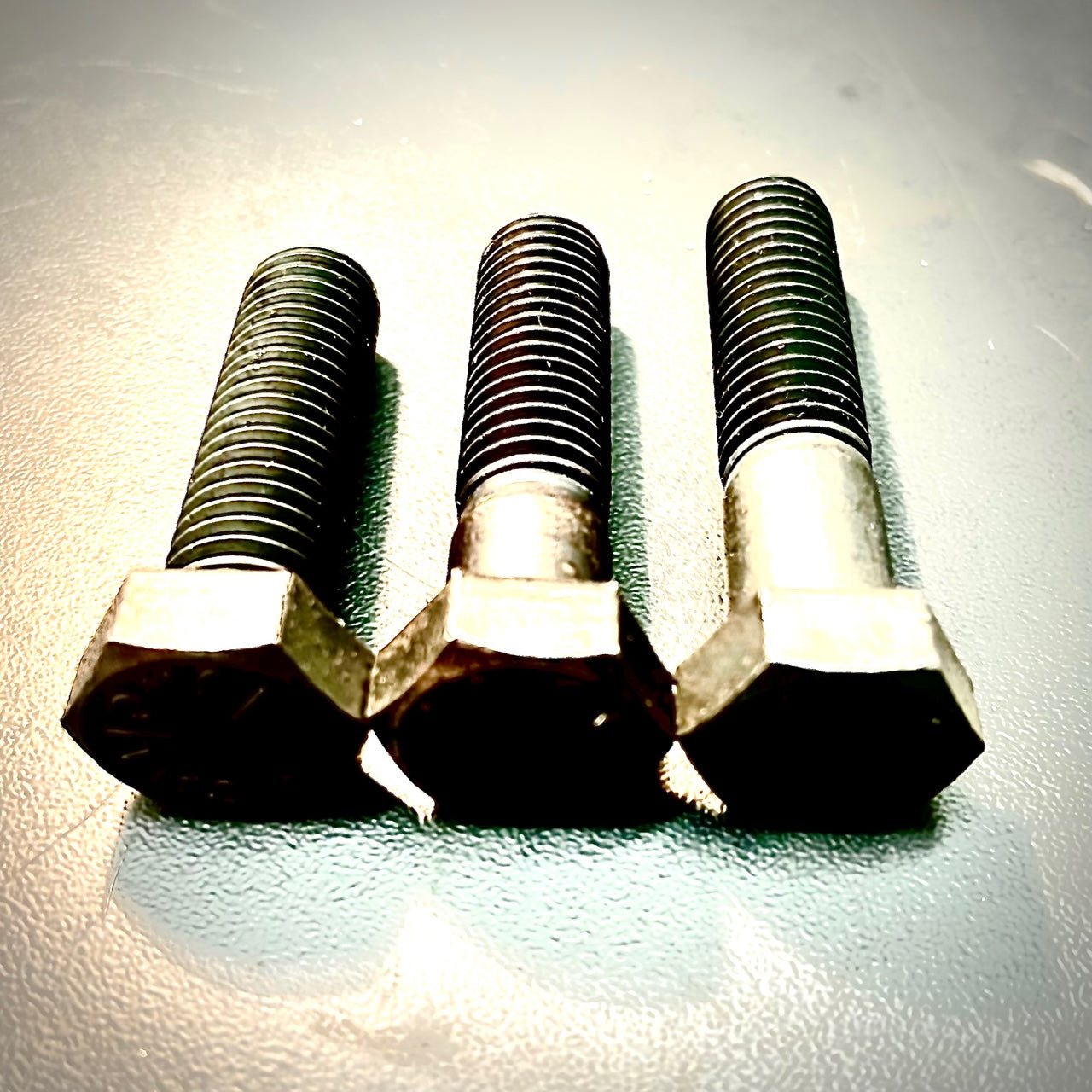

Hexagon Head Bolt

Bolt is the term used for a partially threaded fastener (bolt with shoulder/ part plain shank bolt), with a head; designed to be used with a nut and washer.

Orders placed before 2pm are dispatched same day (Mon-Fri) and free shipping is Royal Mail, 2nd Class (2-5 days). Postage upgrades available at checkout.

Please make your, 'No. of Items in Pack', 'Length' and, 'Quantity' of packs selection from the drop down menus.



UNC 3/8", 16 T. P. I (Threads Per Inch) Lengths Available:

(FT - Fully Threaded, PT - Partially Threaded)

Description of sizes available (not all are listed)
3/8"-16x1/2",(FT) HEXAGON SET SCREWS GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x5/8",(FT) HEXAGON SET SCREWS GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x3/4",(FT) HEXAGON SET SCREWS GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x7/8",(FT) HEXAGON SET SCREWS GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x1",(FT) HEXAGON SET SCREWS GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x1 1/8",(FT) HEXAGON SET SCREWS GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x1 1/4",(FT) HEXAGON SET SCREWS GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x1 3/8",(FT) HEXAGON SET SCREWS GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x1 1/2",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x1 3/4",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x2",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x2 1/4",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x2 1/2",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x2 3/4",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x3",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x3 1/4",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x3 1/2",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x3 3/4",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x4",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x4 1/4",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x4 1/2",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x4 3/4",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x5",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x5 1/4",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x5 1/2",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x6",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x6 1/4",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x6 1/2",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x7",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR
3/8"-16x7.1/2",(PT) HEXAGON BOLT GRADE 5 UNC MED. CARBON SELF COLOUR



UNC 3/8" - 16 T. P. I Fully or Partially Threaded::



FIXABALL – Specialist Fixings and Fasteners Suppliers

UNC 3/8” Hex Bolts and Hex Sets

Length

Type of Fastener

Threads Per Inch

(T.P.I)

1/2" Hex Set (FT)
1" Hex Set (FT)

1.1/4”

Hex  Set (FT)

16 T.P.I

1.1/2”,

Hex Bolt (PT)

2”

Hex Bolt (PT)

2.1/4”

Hex Bolt (PT)

2.1/2”

Hex Bolt (PT)

3.1/4”

Hex Bolt (PT)

3.1/2”

Hex Bolt (PT)

4”

Hex Bolt (PT)

4.1/2”

Hex Bolt (PT)

5.1/2”

Hex Bolt (PT)

6”

Hex Bolt (PT)

6.1/2" Hex Bolt (PT)

7”

Hex Bolt (PT)

7.1/2"

Hex Bolt (PT)

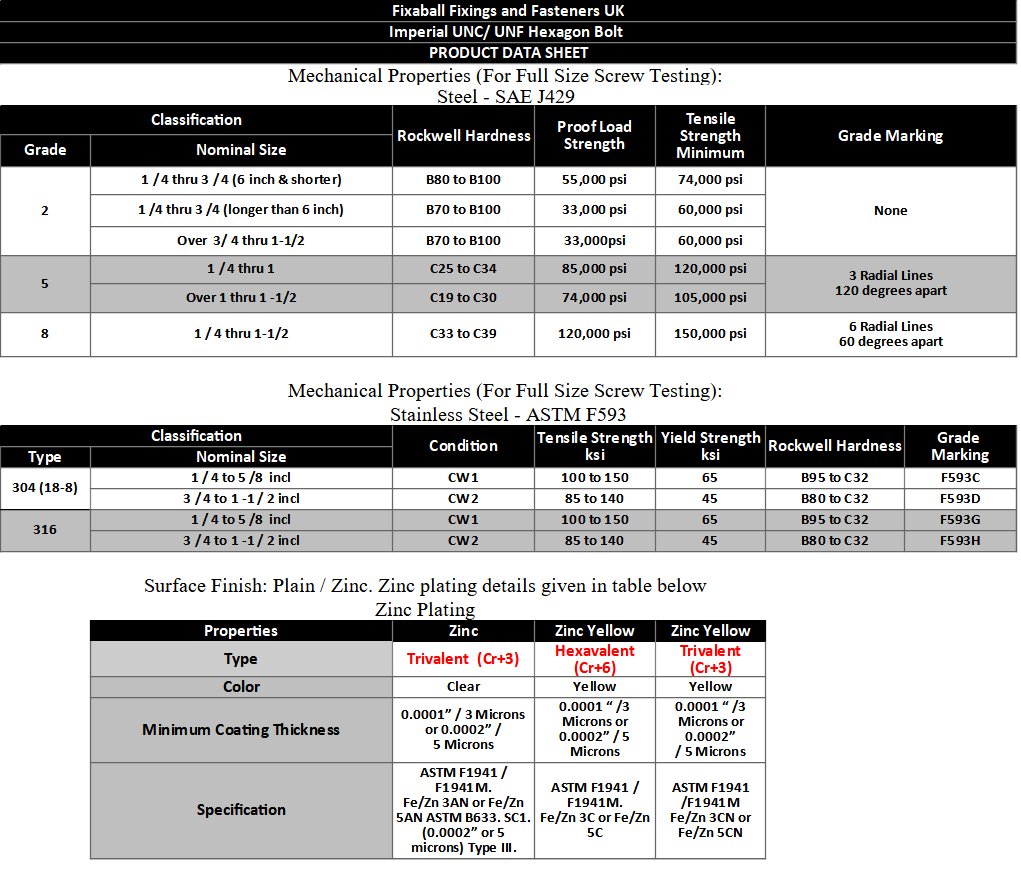

High Tensile, UNC Hex Bolts and Hex Sets.

UNC and UNF high tensile standard is marked with an, '5'. This is comparable with Metric, High Tensile - 8.8.

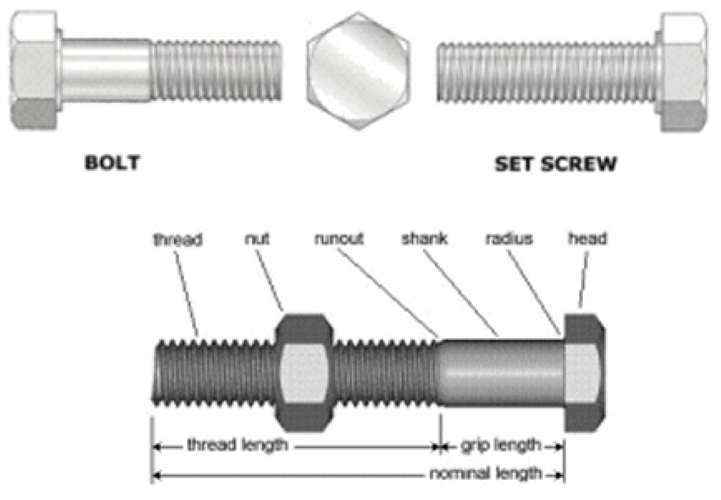

Hex Bolt vs Hex Set Screw

A Hex Bolt is the term used for a partially threaded fastener, with a hexagon head; designed to be used with a nut and washer. A Hex Set (Screw Bolt) is the same, except it is fully threaded. A screw screws into something, a bolt joins several things together from both sides of materials joined. A screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank/ shoulder).



UNIFIED THREAD STANDARDS

Thread standards agreed upon by standard bodies of Canada, the United Kingdom, and the United States.

Unified National (UN) thread form with a rounded root contour, applies only to external threads. (The UN thread form has a flat, or optionally, a rounded root contour.) The majority of fasteners with a Unified thread form (UNC, UNF) have a rounded root contour i.e. are UNR threads.

Unified National Coarse (UNC) is a thread form with a 60 degree flank angle rounded roots and flat crests. For a given diameter it has a larger thread pitch than an equivalent diameter UNF thread. The unified thread is based on inch sizes and was first standardised in 1948 unifying the Whitworth and American standard thread forms.
