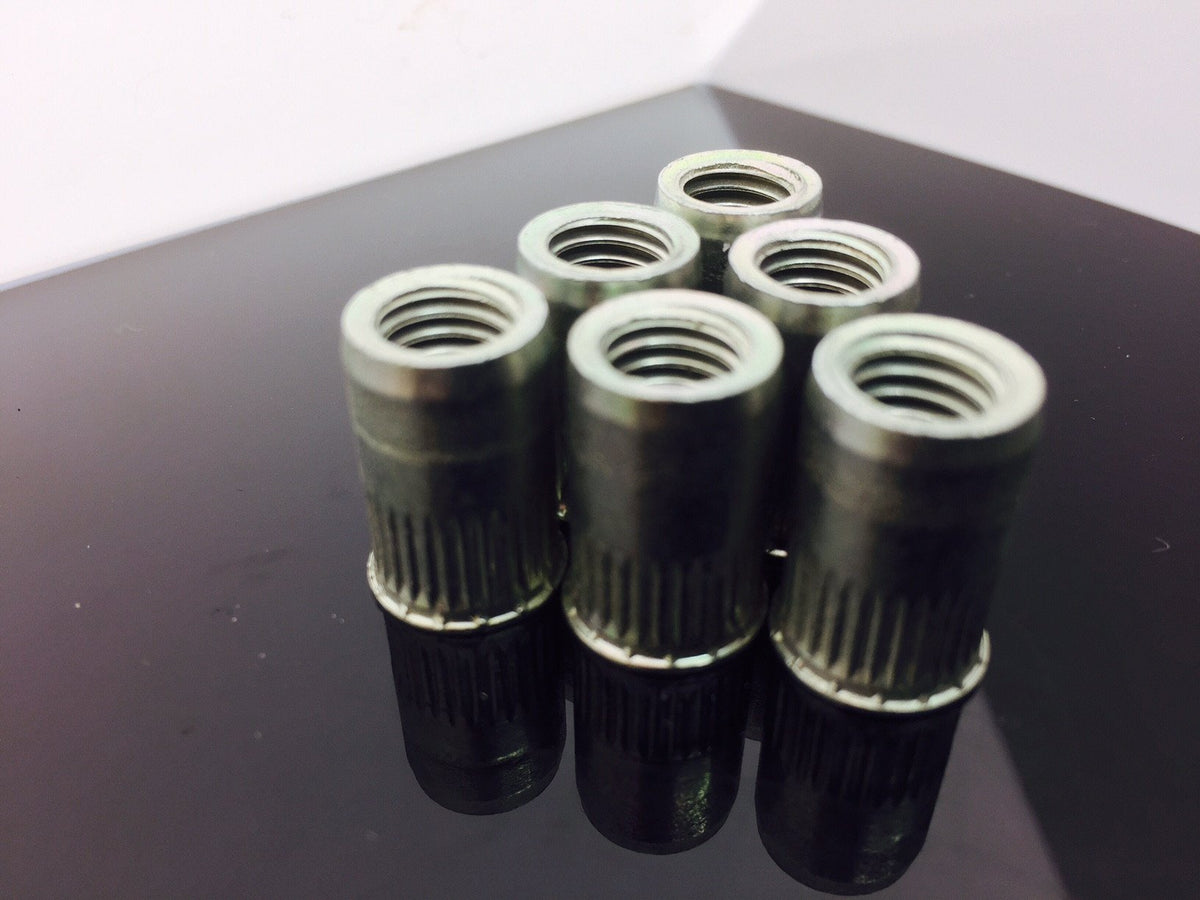

Rivet Nut - Reduced Head

Rivet Nut Steel BZP Reduced Head Round Knurled Body

Rivet Nut Steel BZP Reduced Head Round Knurled Body

Prezzo di listino £2.96 GBP
Prezzo di listino Prezzo scontato £2.96 GBP
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
No. of Items in Pack
Thread x Length

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

METRIC Reduced Head, Rivet Nut, Steel, Zinc plated

Fixaball sells all M3, M4, M5, M6, M8, M10, M12 BZP Reduced Head Rivet Nuts.

They are fitted using a specialised tool called a Threaded Rivet Insert Tool - the mandrel on the tool is threaded into the rivet. As you squeeze the handles of the tool the mandrel is pulled towards you and deforms on the back of the rivet, on the back of the sheet material creating a bulge that clamps the sheet between the head and the deformation.

Head - Reduced

Reduced Head Rivet nuts provide a strong captivated thread in thin panels and in applications where only one side of the panel is accessible such as box or tube section. Rivet nuts have an advantage over other captivated fasteners because they can be installed on site or used for repair work to replace a previously installed fastener that has failed. The advantage of installation from one side of the application means that access to the back of the panel is never required.

Body  - Knurled/ Serrated Under Head

The Riv-nut sizes have serrations/ grooves called knurls on the body to help give grip and prevent rotation during fabrication.

Thread – Standard Metric Coarse



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please choose your size and pack quantity from the drop down menus.



Reduced Head, Rivet Nut, Steel, Zinc are available in the following sizes:

M3X11.5 (1.5-3.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M4X13.0 (2.0-4.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M5X13.0 (2.0-4.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M6X16.0 (2.5-5.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M8X18.5 (3.0-5.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M10X22.0 (3.5-6.0) Steel Reduced Head Round Knurled Body JRP Rivet Nuts
M12X27.5 (4.0-6.5) Steel Reduced Head Round Knurled Body JRP Rivet Nuts



Material and Finish

Riv-Nuts Mild Carbon Steel Cr3 - Zinc Plated



Important dimensions and installation sizes

Fixaball – Specialist Fixings and Fasteners Suppliers

Reduced Head Rivet Nuts, Steel (zinc plated)

All dimensions in Metric – Millimetres - mm

Thread size and Pitch

Body Diameter

Total Length

Drill Hole Size

Material Grip Range

M3 x 0.5mm

4.9

11.5

5mm

1.5mm-3.0mm

M4 x 0.7

5.9

9.5

6mm

0.3 To 3.0mm

M5 x 0.8

6.9

12

7mm

0.5 To 3.0mm

M6 x 1

8.9

14.5

8.5mm-9mm

0.5 To 5.0mm

M8 x 1.25

10.9

16.5

10.5mm-11mm

0.5 To 5.0mm

M10 x 1.5

12.9

17

12.5mm-13mm

0.5 To 5.5mm

M12 x 1.75mm

15.9mm

27.5mm

16mm

4.0mm-6.5mm



Image is for illustrative purposes only.
