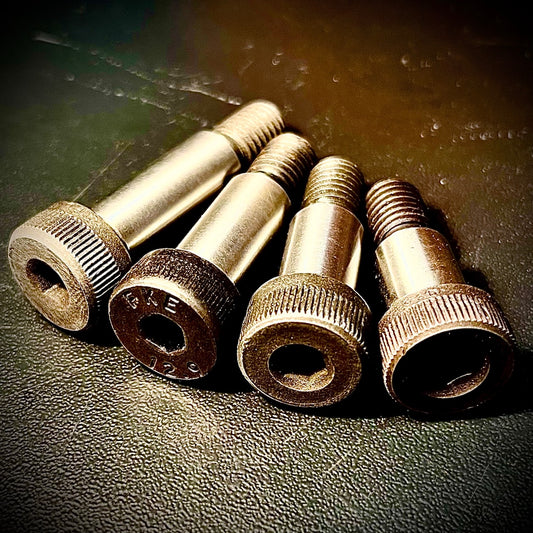

Socket, Shoulder Cap Screw, High Tensile (12.9), DIN 7379
Fixaball sells lengths and diameters of Metric, Shoulder, Cap Screws in high tensile steel, grade 12.9.
Shoulder Socket Cap Screws Description
Shoulder Socket Cap Screws are high tensile and hardness strength fasteners with an Internal Hex or Allen key drive style head. The shoulder is a cylindrical unthreaded area before the thread, allowing for rotation of parts and are used in moving parts and other mechanical applications.
Material
Blackened alloy steel, high tensile 12.9 (Hardness 38 HRC, tensile strength 1200 N/mm²)
Technical Notes
ISO 7379. Temperature range -50°C to +300°C.
Torque to:
M5 = 7,5Nm. M6 = 13 Nm. M8 = 33 Nm. M10 = 60 Nm. M12 = 120 Nm. M16 = 270 Nm.
Table: To show metric socket, shoulder bolt dimensions
|
Fixaball – Specialists in Fixings and Fasteners
|
|
METRIC Socket, Shoulder Bolt Dimensions
|
|
All dimensions in mm
|
|
Thread Diameter
|
Thread Length
(Max)
|
Length of Shoulder
|
Diameter of Shoulder
(Max)
|
Socket Head Diameter
|
Hex/ Allen Key Size
|
|
M5
|
9.75
|
10, 12, 16, 25, 30, 40, 50, 60
|
5.99
|
10
|
3
|
|
M6
|
11.25
|
10, 12, 16, 25, 30, 40, 50, 60
|
7.99
|
13
|
4
|
|
M8
|
13.25
|
12, 16, 25, 30, 40, 50, 60, 70
|
9.99
|
16
|
5
|
|
M10
|
16.4
|
16, 25, 30, 40, 50, 60, 70, 80
|
11.98
|
18
|
6
|
|
M12
|
18.4
|
16, 25, 30, 40, 50, 60, 70, 80, 90, 100
|
15.98
|
24
|
8
|
|
M16
|
22.4
|
30, 40, 50, 60, 70, 80, 90, 100, 120
|
19.98
|
30
|
10
|
|
M20
|
27.4
|
40, 50, 60, 70, 80, 90, 100, 120
|
23.98
|
36
|
12
|
Torque to:
M5 = 7,5Nm. M6 = 13 Nm. M8 = 33 Nm. M10 = 60 Nm. M12 = 120 Nm. M16 = 270 Nm.
