Metric, Hex-Set plus Washer

M16 x Over 100mm Hex Set Screw Plus Washer H.T. 8.8 Zinc BZP

M16 x Over 100mm Hex Set Screw Plus Washer H.T. 8.8 Zinc BZP

Prezzo di listino £7.24 GBP
Prezzo di listino Prezzo scontato £7.24 GBP
In offerta Esaurito
Imposte incluse. Spese di spedizione calcolate al check-out.
No. of Items in Pack
Length (mm)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

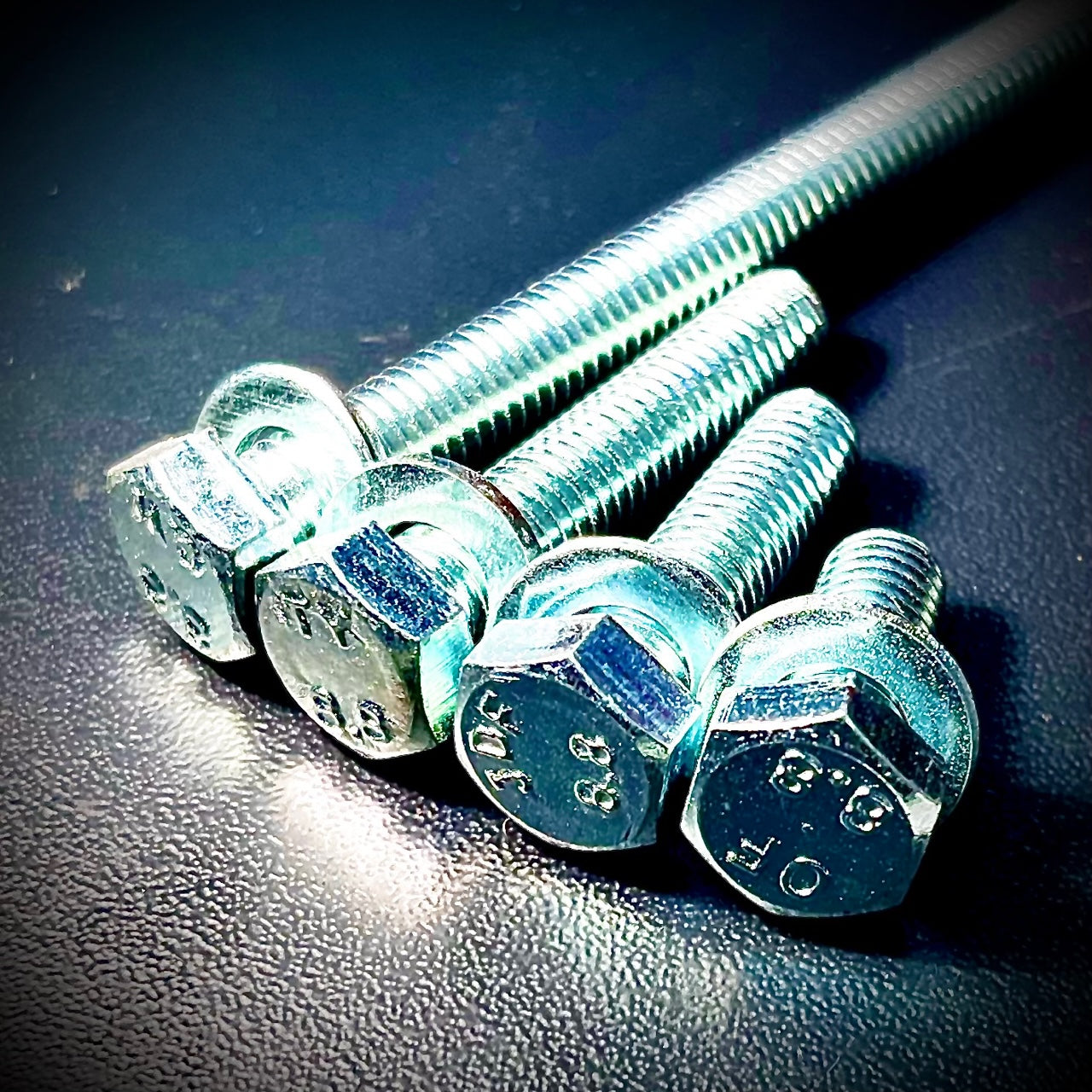

M16 Hex Set Screw (2.00mm Pitch, Standard Coarse Thread), High Tensile (8.8), Zinc Plated. DIN 933

Fixaball sells all lengths of M16, zinc, hexagon head, set screws (fully threaded).

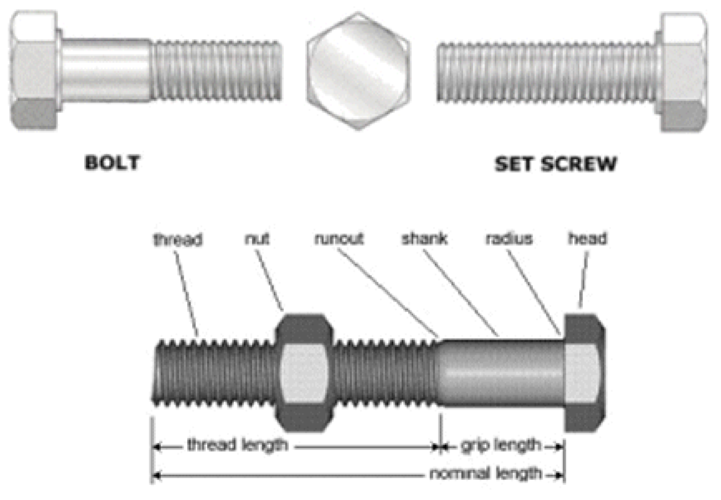

Hex Head Set Screw is similar to a hex head, bolt and can be used in a similar way. The difference is that a set is fully threaded and a bolt is not. A bolt has a part-plain shank that will reduce damage to a hole where you will expect movement and vibrations. A set might be used to fix something to a permanent position and has better flexibility with fastening with it’s longer threaded area.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'No. of Items in Pack', 'Length', and 'Quantity' of packs selection from the drop down menus.



Head Type

Hexagon Head.

M16 Lengths Available:

M16 X 100 HEX SET 8.8 DIN 933 BZP
M16 X 110 HEX SET 8.8 DIN 933 BZP
M16 X 120 HEX SET 8.8 DIN 933 BZP
M16 X 130 HEX SET 8.8 DIN 933 BZP
M16 X 140 HEX SET 8.8 DIN 933 BZP
M16 X 150 HEX SET 8.8 DIN 933 BZP
M16 X 200 HEX SET 8.8 DIN 933 BZP



Spanner Sizes

FIXABALL – Specialist Fixings and Fasteners

Spanner Sizes

METRIC - Hexagon Head Bolts/ Sets

Thread Size/ Diameter

Spanner Size

M3 (3mm)

5.5mm

M4 (4mm)

7mm

M5 (5mm)

8mm

M6 (6mm)

10mm

M8 (8mm)

13mm

M10 (10mm)

17mm

M12 (12mm)

19mm

M14 (14mm)

22mm

M16 (16mm)

24mm

Threads

This listing is for standard coarse thread, partially threaded bolts.

Metric Threads are measured in Millimetres (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm and a fine one has more. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.



Metric Threads/ Pitches

Fixaball – Specialists in Fixings and Fasteners



Pitch / Thread Types

Size/ Diameter

Standard/ Coarse

Fine

Super Fine

M16

2.0

1.5





Image is for illustrative purposes only.
