UNF, Hex-Bolt

UNF 3/8" Hex Bolt Set Screw High Tensille 8.8 Self Colour Black

UNF 3/8" Hex Bolt Set Screw High Tensille 8.8 Self Colour Black

Regular price £3.27 GBP
Regular price Sale price £3.27 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
No. of Items in Pack
Length (inches)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

UNF 3/8", Fully Threaded Hex-Sets and Partially Threaded Hex Bolts, High Tensile (5/ 8.8), Self-Colour/ Black

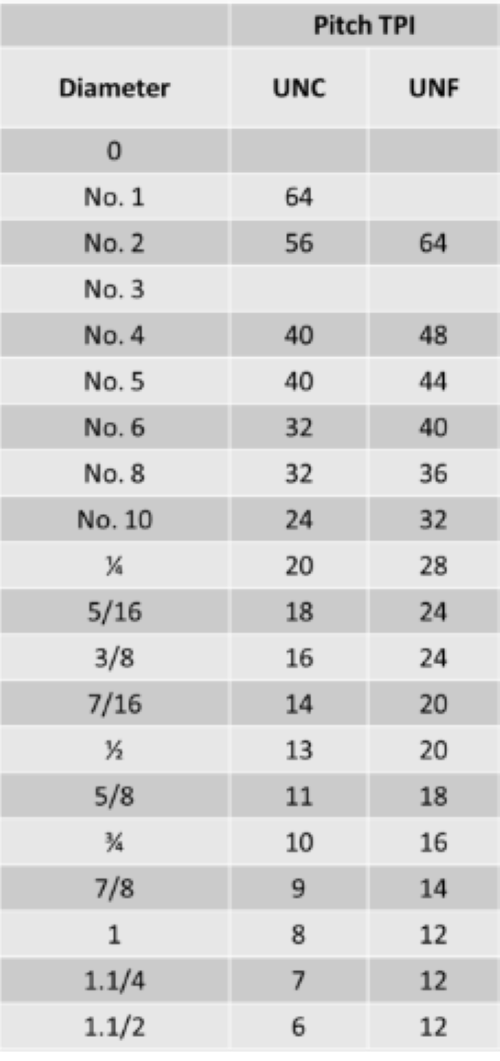

UNF 3/8" has 24 T. P. I (Threads Per Inch)

Fixaball sells lengths of UNF, 3/8", Hex Bolts and Hex Sets.

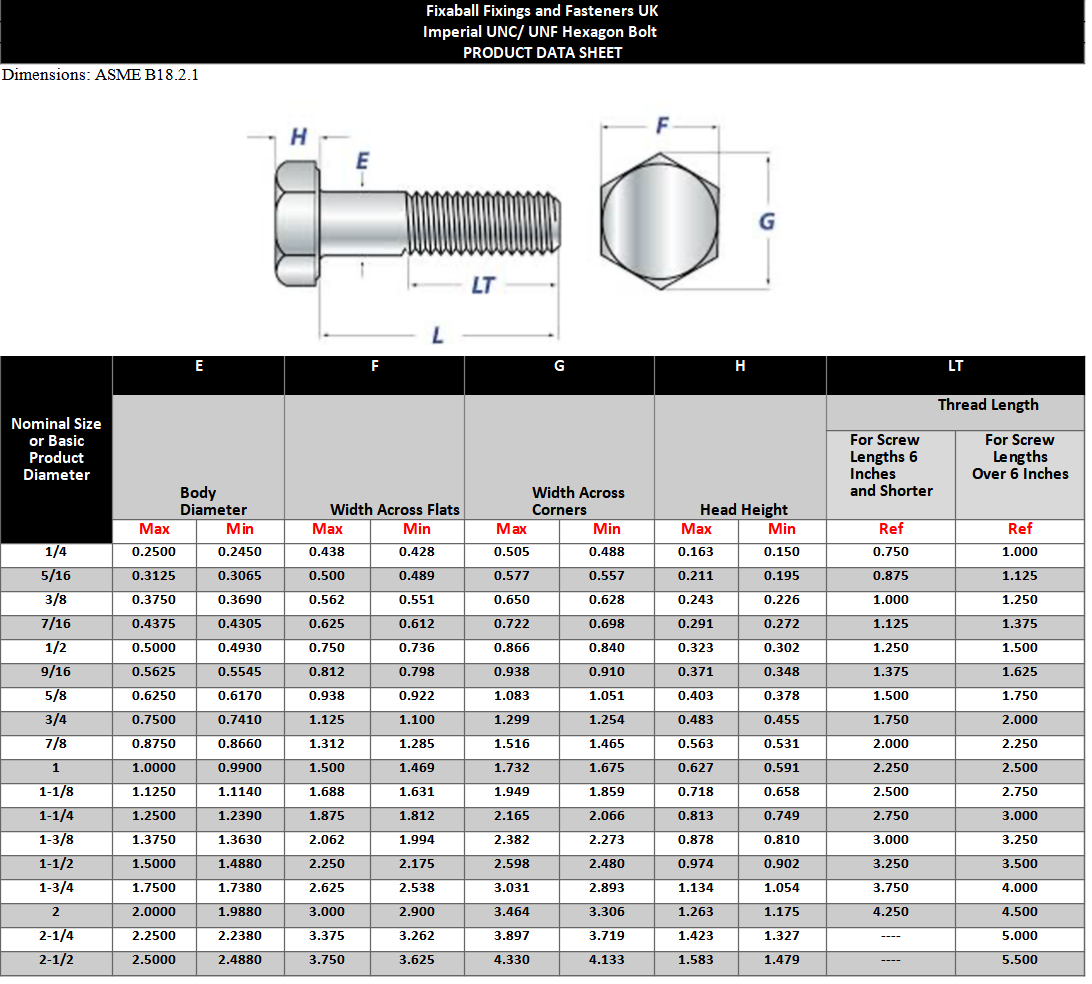

Hexagon Head Bolt

Bolt is the term used for a partially threaded fastener (bolt with shoulder/ part plain shank bolt), with a head; designed to be used with a nut and washer.

Orders placed before 2pm are dispatched same day (Mon-Fri) and free shipping is Royal Mail, 2nd Class (2-5 days). Postage upgrades available at checkout.

Please make your, 'No. of Items in Pack', 'Length' and, 'Quantity' of packs selection from the drop down menus.



UNF 3/8" - 24 T. P. I Fully or Partially Threaded::

(FT - Fully Threaded, PT - Partially Threaded)

3/8"-24x1/2",(FT) HEXAGON SET SCREWS GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x3/4",(FT) HEXAGON SET SCREWS GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x1",(FT) HEXAGON SET SCREWS GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x1 1/4",(FT) HEXAGON SET SCREWS GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x1 3/4",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x2",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x2 1/4",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x2 1/2",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x2 3/4",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x3",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x3 1/2",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x4",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x4 1/2",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x5",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x6",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x7",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x8",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
3/8"-24x10",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR



FIXABALL – Specialist Fixings and Fasteners Suppliers

UNC 3/8” Hex Bolts and Hex Sets

Length

Type of Fastener

Threads Per Inch

(T.P.I)

1/2" Hex Set (FT)
1" Hex Set (FT)

1.1/4”

Hex  Set (FT)

16 T.P.I

1.1/2”,

Hex Bolt (PT)

2”

Hex Bolt (PT)

2.1/4”

Hex Bolt (PT)

2.1/2”

Hex Bolt (PT)

3.1/4”

Hex Bolt (PT)

3.1/2”

Hex Bolt (PT)

4”

Hex Bolt (PT)

4.1/2”

Hex Bolt (PT)

5.1/2”

Hex Bolt (PT)

6”

Hex Bolt (PT)

6.3/8" Hex Bolt (PT)

7”

Hex Bolt (PT)

Please make your size and pack quantity selection from the drop down menus at the top of the page.

High Tensile, UNC Hex Bolts and Hex Sets.

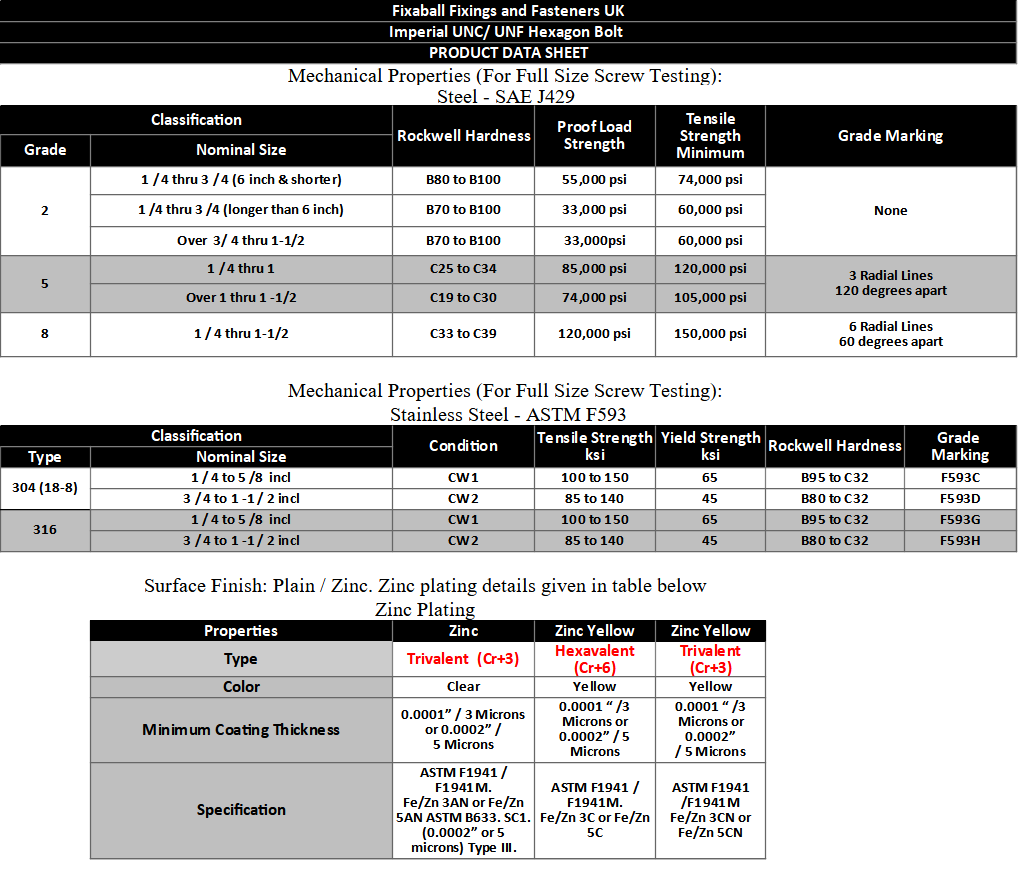

UNC and UNF high tensile standard is marked with an, '5'. This is comparable with Metric, High Tensile - 8.8.

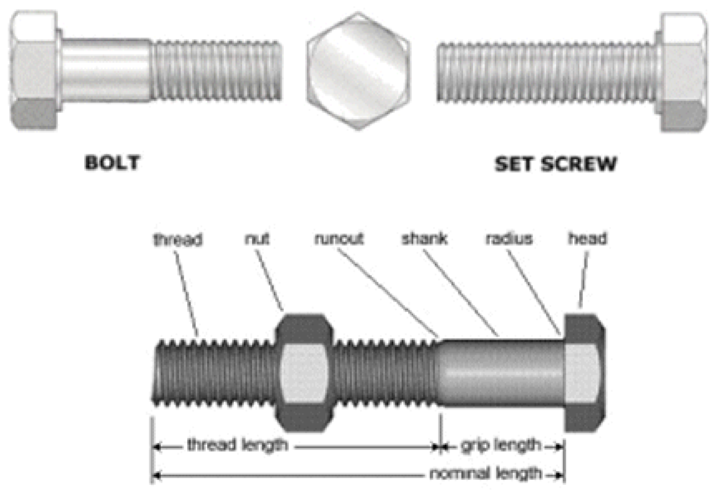

Hex Bolt vs Hex Set Screw

A Hex Bolt is the term used for a partially threaded fastener, with a hexagon head; designed to be used with a nut and washer. A Hex Set (Screw Bolt) is the same, except it is fully threaded. A screw screws into something, a bolt joins several things together from both sides of materials joined. A screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank/ shoulder).



UNIFIED THREAD STANDARDS

Thread standards agreed upon by standard bodies of Canada, the United Kingdom, and the United States.

Unified National (UN) thread form with a rounded root contour, applies only to external threads. (The UN thread form has a flat, or optionally, a rounded root contour.) The majority of fasteners with a Unified thread form (UNC, UNF) have a rounded root contour i.e. are UNR threads.

Unified National Fine (UNF) is a thread form with a 60 degree flank angle rounded roots and flat crests. For a given diameter it has a smaller thread pitch than an equivalent diameter UNC thread.
