Metric - Cap Head
M7 Socket Cap Allen Screw Bolt 12.9 Self Colour
M7 Socket Cap Allen Screw Bolt 12.9 Self Colour
Couldn't load pickup availability
Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

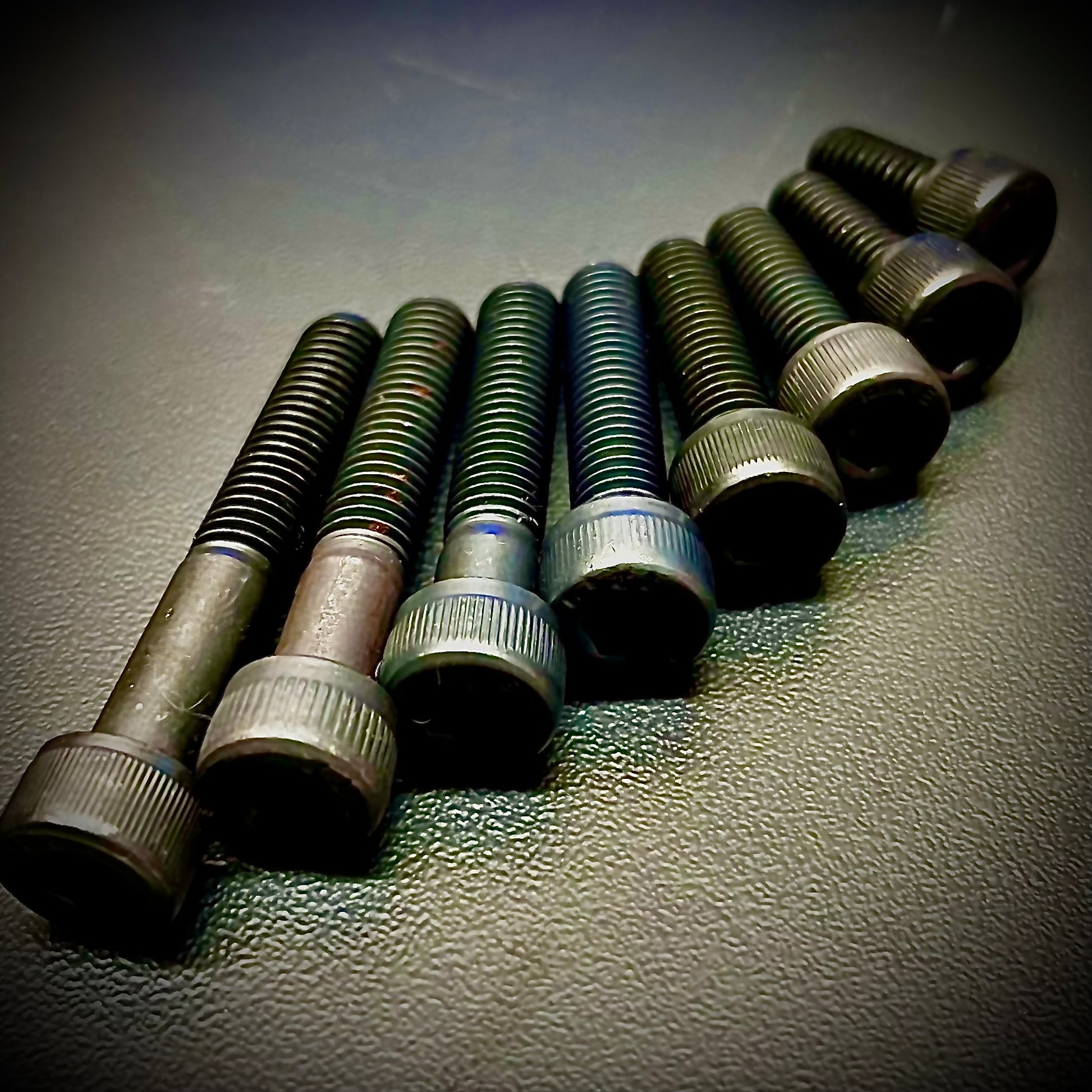

M7 x 1.0mm Pitch, Standard Coarse Thread, Allen Socket, Cap Head, Screw/ Bolt, High Tensile (12.9), Self-colour, DIN 912
Fixaball sells all lengths of M7, self-colour, allen socket cap screw/ bolts.
Description: M7 socket cap screw/ bolts.
Material: High Tensile Steel Gade 12.9.
Coating/ Finish: Self Colour/ Black.
Thread: Threads are metric coarse M7 x 1.0mm pitch.
Head diameter: 10.9mm.
Head height: 7mm.
Allen key size: 6mm.
Standard: DIN 912.
Note: Bolt lengths do not include the head.
What is a socket cap screw/ bolt?

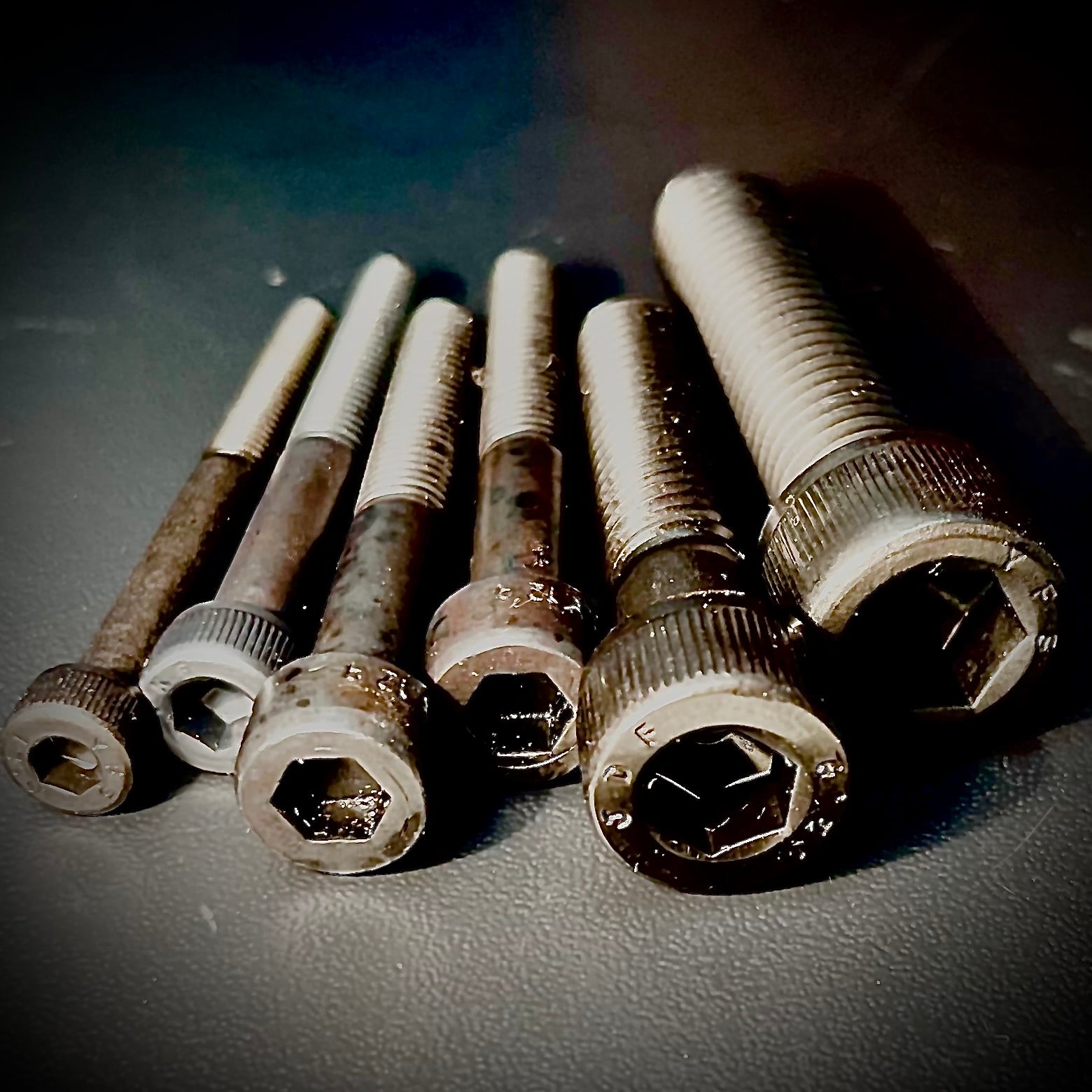

The, ‘Socket Cap Screw/ Allen Bolt,’ term is used to describe a fastener that is either fully or partially threaded. A screw is fully threaded and a bolt is partialy threaded. Some engineers may call them screws if the person uses the shorter length range of sizes. The thread stays the same length as the fastener gets longer and the maximum length of thread is equal to 2.5 times the diameter (or thereabouts). ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head. Here, you can use a hexagon key (Allen Key) to tighten and loosen the fastener. 'Cap' refers to the cylindrical shaped head.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please make your 'No. of Items in Pack', 'Length' and 'Quantity' of packs, selection from the drop down menus.

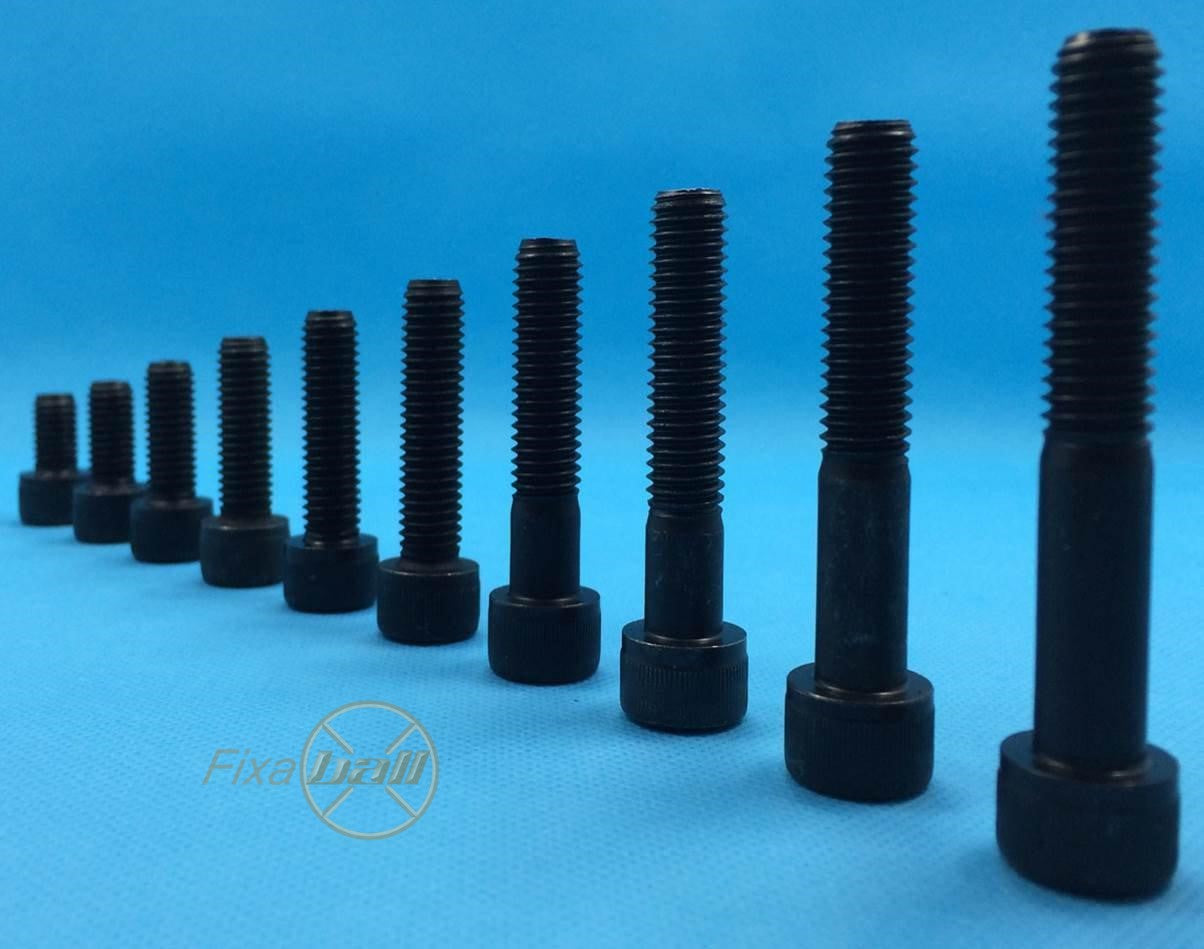

M7 Cap Head, Socket Screw/ Bolt Lengths Available:
(FT - Fully Threaded, PT - Partially Threaded)
| M7 x 16mm (FT) | Socket Capscrews | Metric ISO/DIN 12.9 | METRIC | |
| M7 x 20mm (FT) | Socket Capscrews | Metric ISO/DIN 12.9 | METRIC | |
| M7 x 25mm (FT) | Socket Capscrews | Metric ISO/DIN 12.9 | METRIC | |
| M7 x 30mm (FT) | Socket Capscrews | Metric ISO/DIN 12.9 | METRIC | |
| M7 x 35mm (FT) | Socket Capscrews | Metric ISO/DIN 12.9 | METRIC | |
| M7 x 40mm (PT) | Socket Capscrews | Metric ISO/DIN 12.9 | METRIC | |
| M7 x 45mm (PT) | Socket Capscrews | Metric ISO/DIN 12.9 | METRIC | |
| M7 x 50mm (PT) |
|
|
| M7 x 60mm (PT) | Socket Capscrews | Metric ISO/DIN 12.9 | METRIC | |
| M7 x 70mm (PT) | Socket Capscrews | Metric ISO/DIN 12.9 | METRIC |
Allen socket, cap head screw/ bolt 12.9 Grade, High Tensile Applications
An allen socket, cap head screw is best used in engineering applications where you are joining components under heat and or high compression, tension, torque or shearing stress. Such as, fastening together automotive or machinery parts. Allen socket, cap head screw/ bolts are designed to be used as a temporary fastener where components need maintenance or should be replaced due to functional wear.
Material: High Tensile (12.9 Grade) - Plain/ Self Colour
|
Material/ Finish |
Appearance |
Level of Corrosion Resistance |
Typical Application |
|
High Tensile Steel (12.9) |
Self-Colour (black with no surface treatment) |
Low, without further surface treatment |
No exposure to moisture. Often Greased/ Oiled |
Grade 12.9 Steel has a higher carbon content than your regular 8.8 high tensile steel and is therefore better for hardness and rigidity. Zinc provides a shiny metallic finish and some resistance to weathering.
Metric Coarse threads are in millimetre (mm) units and were developed to simplify the imperial systems. A coarse thread has less helical coils per mm and is used for heavier/ higher torque loads. Coarse threads are the, 'normal', most common versions.
Image is for illustrative purposes only.
