M27 Hex Bolt Nut Washers HT 8.8 BZP DIN931
M27 Hex Bolt Nut Washers HT 8.8 BZP DIN931
Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.
M27 Hexagon/ Hex Head, Part Plain Shank, Partially Threaded Bolts, High Tensile, Steel Grade 8.8, Zinc Plated, DIN 931, Plus Full Hex Nut and 2, Form A, Washers
Fixaball sell all lengths of M27 hexagon head, bolts.
Hexagon Head Bolt
Bolt is the term used for a partially threaded fastener (bolt with shoulder/ part plain shank bolt), with a head; designed to be used with a nut and washer.
Orders placed before 2pm are dispatched same day (Mon-Fri) and free shipping is Royal Mail, 2nd Class (2-5 days). Postage upgrades available at checkout.
Please make your, 'No. of Items in Pack', 'Length' and, 'Quantity' of packs selection from the drop down menus.
M27 Hex Bolts Lengths Available
M27 X 80 HEX BOLT 8.8 DIN 931 BZP, Plus Nut and 2 Washers |
M27 X 100 HEX BOLT 8.8 DIN 931 BZP, Plus Nut and 2 Washers |
M27 X 110 HEX BOLT 8.8 DIN 931 BZP, Plus Nut and 2 Washers |
M27 X 120 HEX BOLT 8.8 DIN 931 BZP, Plus Nut and 2 Washers |
M27 X 130 HEX BOLT 8.8 DIN 931 BZP, Plus Nut and 2 Washers |
Metric, Standard Coarse Thread dimensions are measured in Millimetre (mm) units and were developed to simplify the imperial systems. Europe moved to this system but the Americans choose Imperial as their default. A coarse thread has less helical coils per mm than a Metric Fine Thead. Coarse is used for heavier loads and fine is used for lighter loads prone to vibrations.
Bolt Thread
The thread length of a shoulder bolt/ plain shank bolt tends to be 2.5 times the diameter of the fastener. Please ask for exact measurements if the shoulder is crucial.
Bolt vs Screw
A screw screws into something, a bolt joins several things together from both sides of materials joined. A screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank)
Zinc/ BZP Coating
Zinc coats the fastener to add moisture resistance to the steel to slow down the oxidisation (rusting) of the metal. It does not make the steel waterproof. Zinc is used for inernal application for an aesthetic shine (chrome type finish) or where there is likely to be moisture on the screw e.g. garage. Self-colour (no coating) is ok to use with a light covering of oil/ grease, when the fastener is not on show or its appearance is not important.

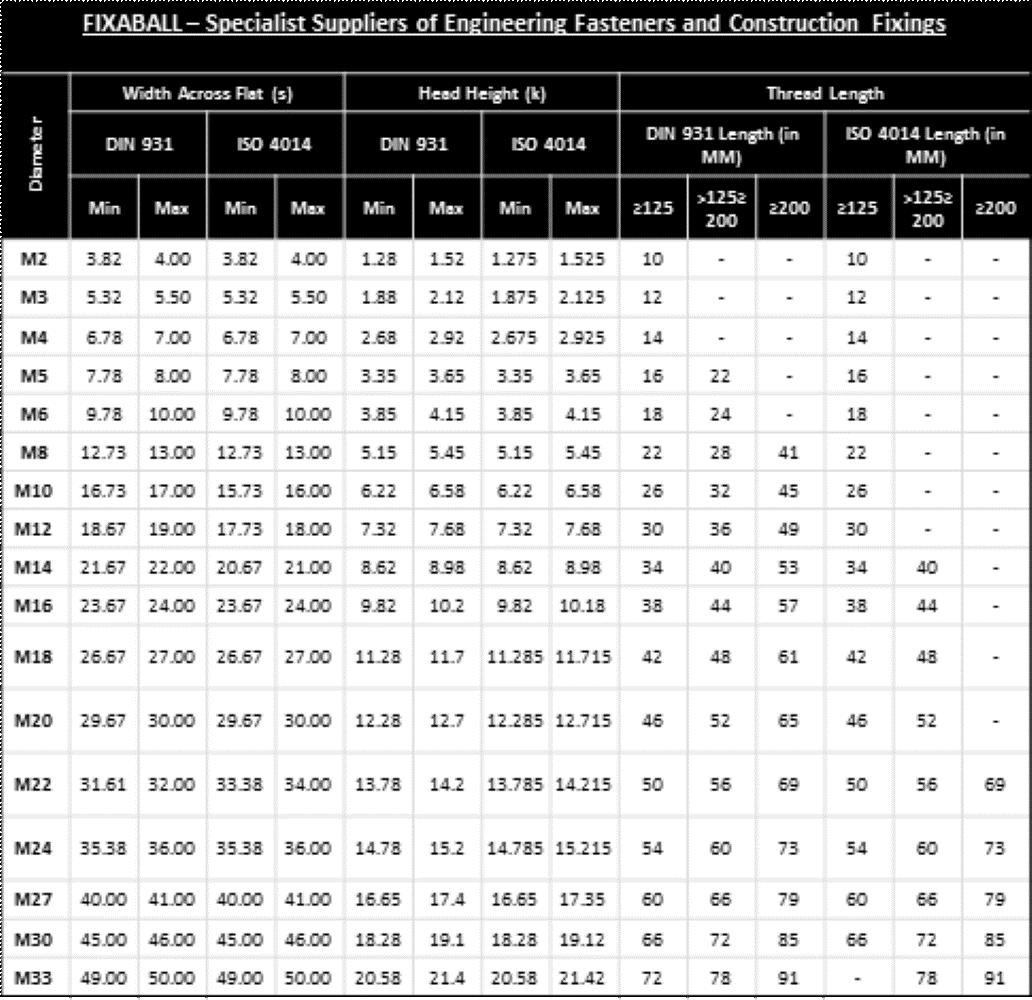

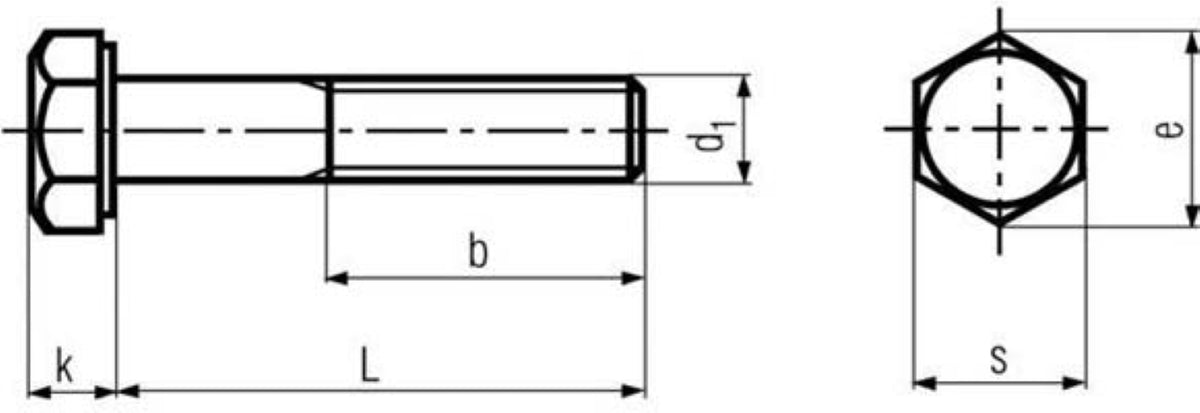

DIN 931 Hex Bolts Dimensions
Diameter |
Width Across Flat (s) |
Thread Length |
||||||||
DIN 931 |
ISO 4014 |
DIN 931 Length (in MM) |
ISO 4014 Length (in MM) |
|||||||
Min |
Max |
Min |
Max |
≥125 |
>125≥200 |
≥200 |
≥125 |
>125≥200 |
≥200 |
|
M27 |
40.00 |
41.00 |
40.00 |
41.00 |
60 |
66 |
79 |
60 |
66 |
79 |

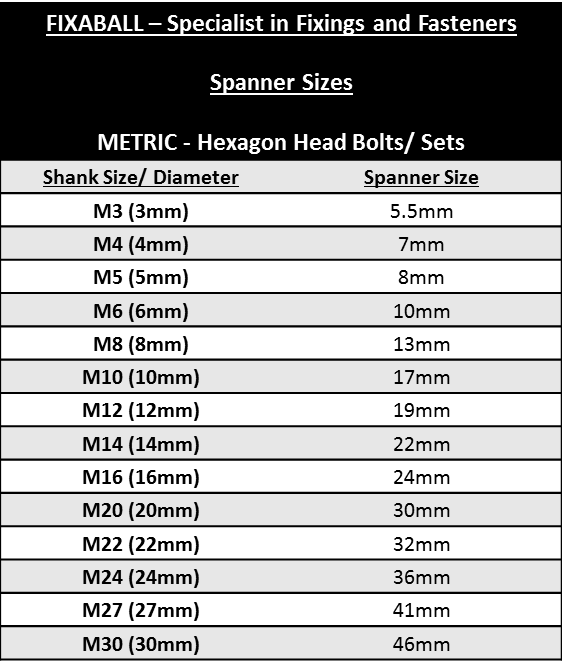

Spanner Sizes
FIXABALL – Specialist Fixings and Fasteners Spanner Sizes METRIC - Hexagon Head Bolts/ Sets |
|
Thread Size/ Diameter |
Spanner Size |
M27 (27mm) |
41mm |
Metric Threads/ Pitches |
|
Fixaball – Specialists in Fixings and Fasteners |
|
Thread Pitch (mm) |
|
Size |
Standard/ Coarse |
M27 |
3.0 |

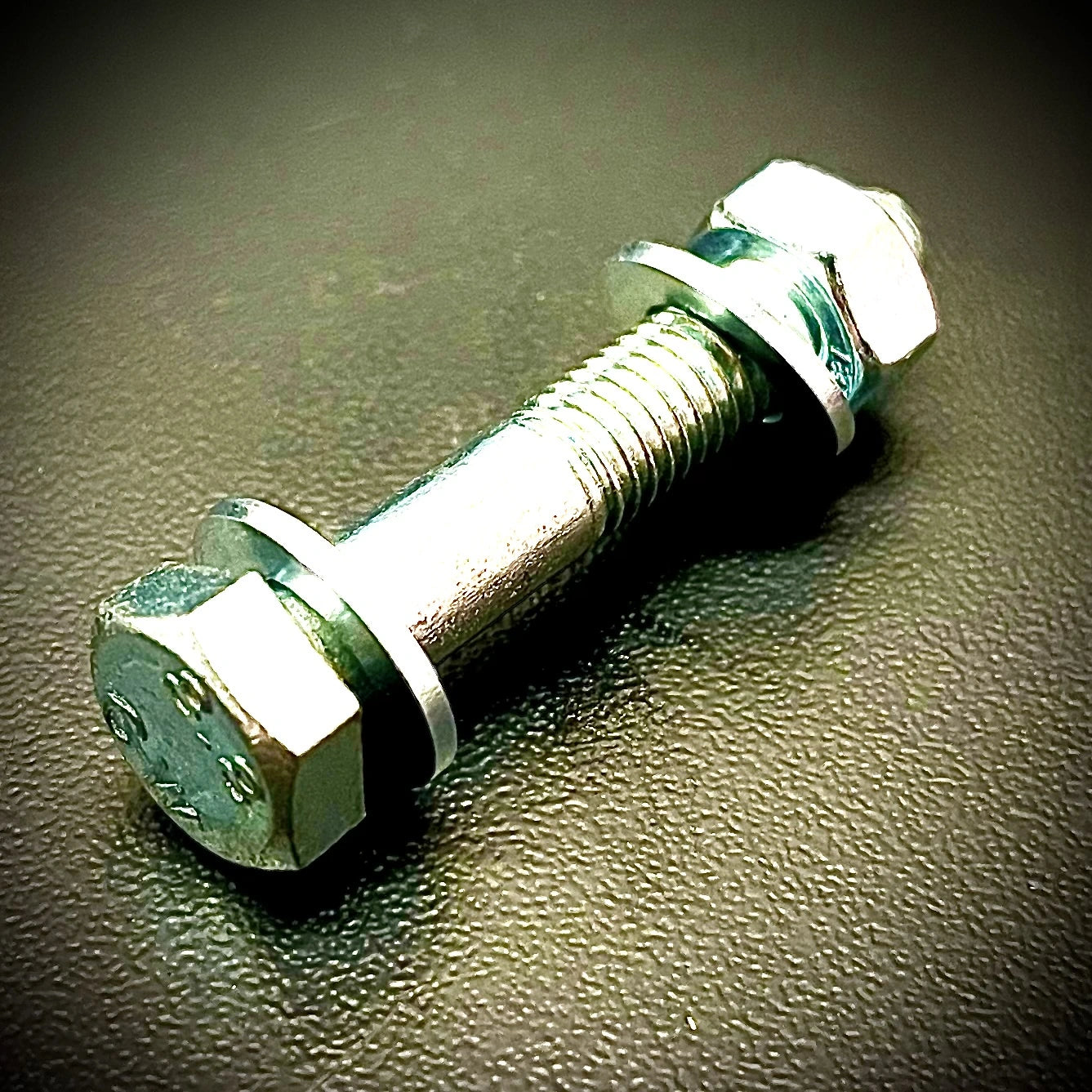

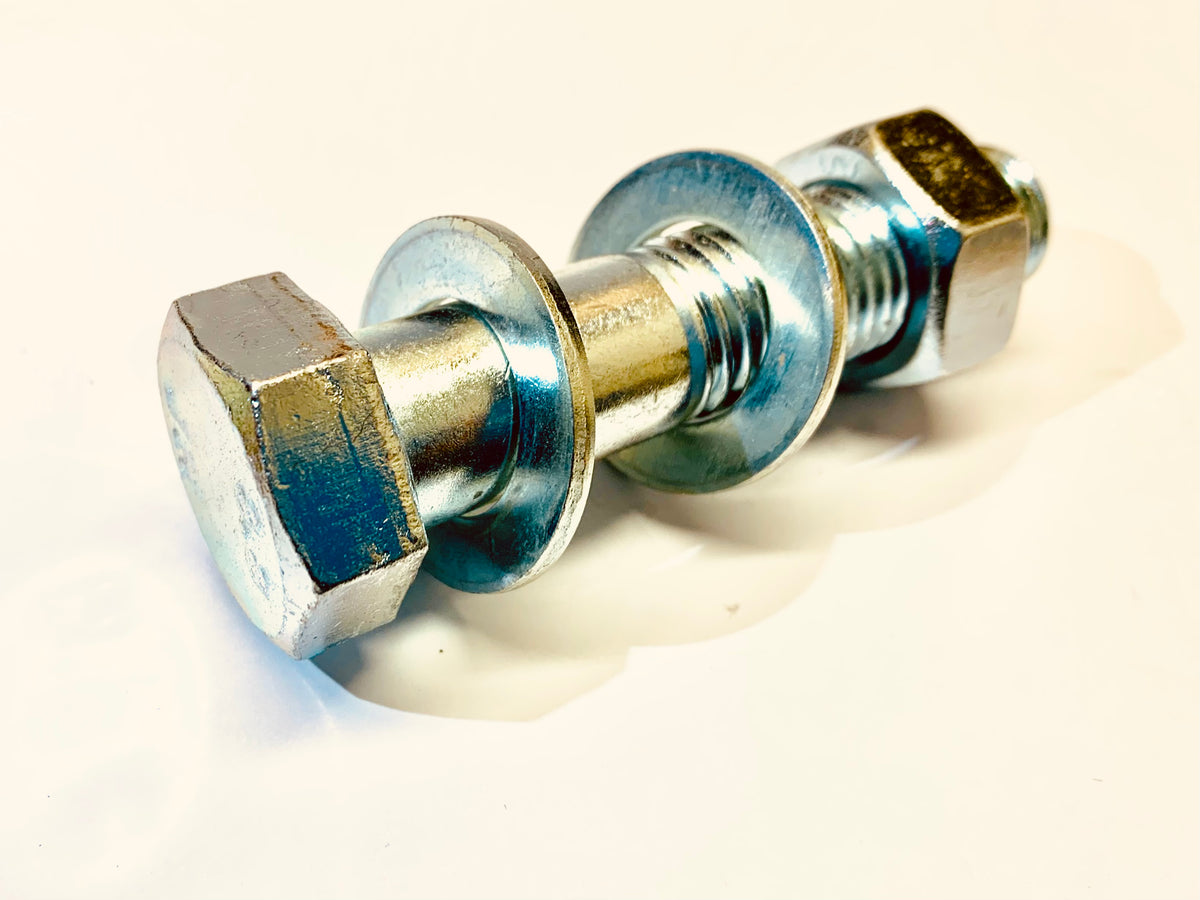

Image is for illustrative purposes only.
