M16 Socket Cap Allen Screw Bolt A2/304 Stainless Steel DIN 912
M16 Socket Cap Allen Screw Bolt A2/304 Stainless Steel DIN 912
Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.
M16, 16mm Diameter (2.0mm Pitch) Standard Coarse Thread, Allen/ Hexagonal Socket, Cap Head, Screw/ Bolt, A2/ 304 Stainless Steel, DIN 912
Fixaball sells all lengths of M16 x 2.0mm Pitch (Standard Coarse Thread), A2/ 304 Stainless Steel, Allen Socket Cap Screw/ Bolts.
Descrcription: M16 socket cap screw/ bolts.
Material: A2/ 304 Stainless Steel.
Coating/ Finish: None.
Thread: Threads are metric coarse M16 x 2.0mm pitch.
Head diameter: 24mm.
Head height: 16mm.
Allen key size: 14mm.
Standard: DIN 912.
Note: Bolt lengths do not include the head.
What is a socket cap screw/ bolt?
The, ‘Socket Cap Screw/ Allen Bolt,’ term is used to describe a fastener that is either fully or partially threaded. A screw is fully threaded and a bolt is partialy threaded. Some engineers may call them screws if the person uses the shorter length range of sizes. The thread stays the same length as the fastener gets longer and the maximum length of thread is equal to 2.5 times the diameter (or thereabouts). ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head. Here, you can use a hexagon key (Allen Key) to tighten and loosen the fastener. 'Cap' refers to the cylindrical shaped head.
Orders placed before 2pm are dispatched same day (Mon-Fri).
Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.
Please make your 'No. of Items in Pack', 'Length' and 'Quantity' of packs, selection from the drop down menus.
M16, Socket Screw, Cap Head, A2/ 304 Stainless Steel, DIN 912 descriptions:
M16 X 30 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 35 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 40 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 45 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 50 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 55 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 60 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 65 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 70 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 75 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 80 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 85 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 90 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 95 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 100 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 110 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
M16 X 120 SOCKET CAP SCREW DIN 912 / ISO 4762 A2-70 STAINLESS STEEL |
Red = request lengths
FIXABALL – Specialist Fixings and Fasteners Suppliers Hexagon/ Allen Key Sizes METRIC – Allen Socket, Cap Head, Screw Bolts |
|
Allen Socket, Cap Head Screw Size Diameter |
Allen/ Hex/ Hexagon Key Required to tighten and loosen |
M16 |
14 |
Available Materials: A2/ 304 Stainless Steel.
Material/ Finish |
Appearance |
Level of Corrosion Resistance |
Typical Application |
A2/ 304 Stainless Steel |
Dull Shine |
External |
Intermittent weathering |
FIXABALL – Specialist Fixings and Fasteners Suppliers Hexagon/ Allen Key Sizes METRIC – Allen Socket, Cap Head, Screw Bolts |
|
Allen Socket, Cap Head Screw Size Diameter |
Allen/ Hex/ Hexagon Key Required to tighten and loosen |
M10 |
8 |

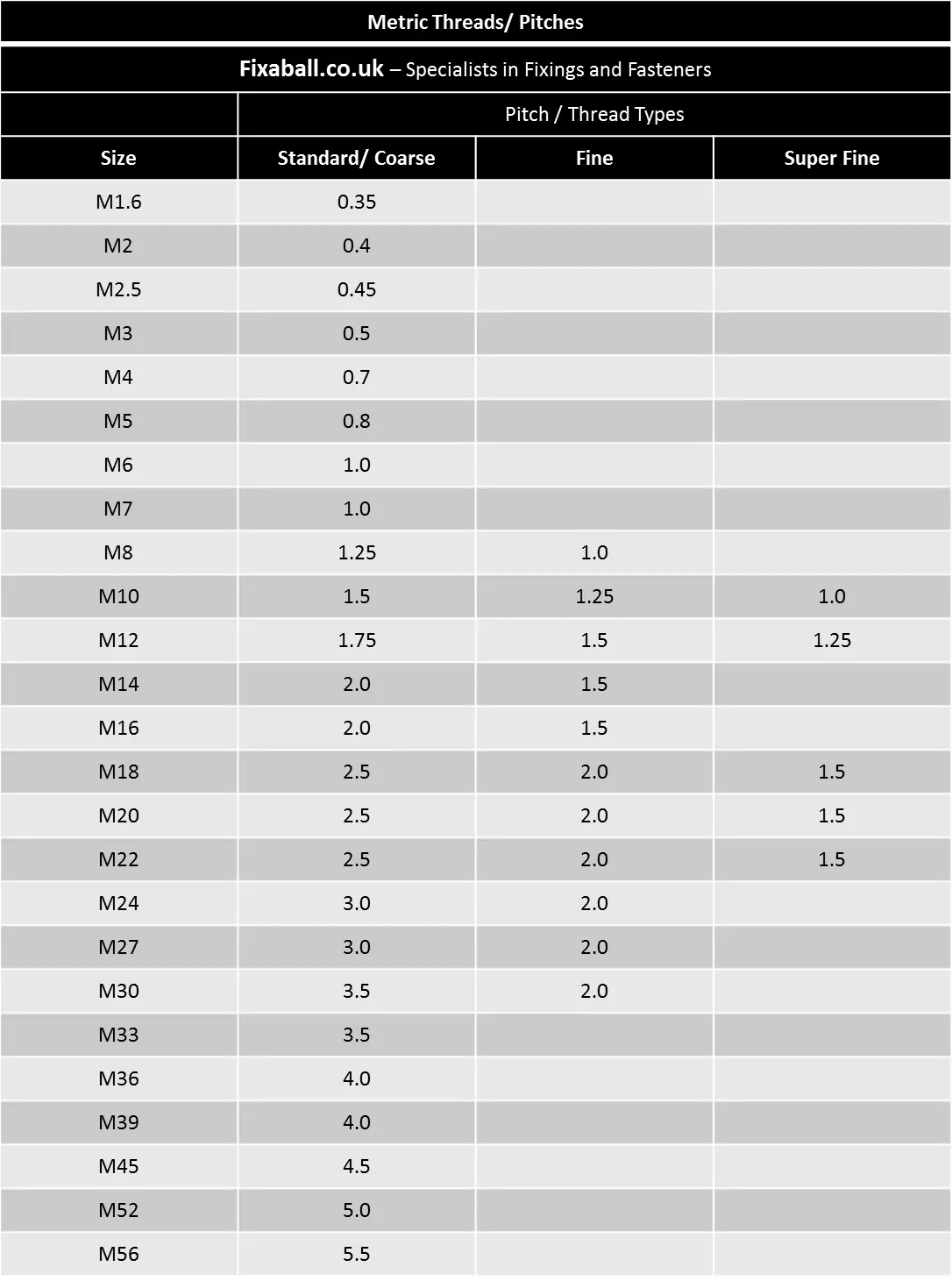

Metric Coarse threads are in millimetre (mm) units and were developed to simplify the imperial systems. A coarse thread has less helical coils per mm and is used for heavier/ higher torque loads. Coarse threads are the, 'normal', most common versions.
