Metric - Cap Head

M14 x Over 90mm Socket Cap Allen Screw Bolt 12.9 Self Colour

M14 x Over 90mm Socket Cap Allen Screw Bolt 12.9 Self Colour

Regular price £5.86 GBP
Regular price Sale price £5.86 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
No of Items in Pack
Length (mm)

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M14 x over and including 90mm, Cap Head, Allen/ Hexagon Socket Screw/ Bolt, High Tensile Steel, Grade 12.9, Self Colour, DIN 912, ISO 4762

Fixaball sells all lengths of M14, Self Colour, Cap, Cylindrical Head, Allen/ Hexagon Socket, Screw/ Bolt, High Tensile Steel, Grade 12.9.

Description: M14 socket cap screw/ bolts.
Material:
High Tensile Steel Grade 12.9.
Coating/ Finish:
Self Colour/ Black.
Thread:
Threads are metric fine M14 x 2.0mm pitch.
Head diameter:
21mm.
Head height:
14mm.
Allen key size:
12mm.
Standard:
DIN 912.
Note:
Bolt lengths do not include the head.

What is a socket cap screw/ bolt?

The, ‘Socket Cap Screw/ Allen Bolt,’ term is used to describe a fastener that is either fully or partially threaded. A screw is fully threaded and a bolt is partialy threaded. Some engineers may call them screws if the person uses the shorter length range of sizes. The thread stays the same length as the fastener gets longer and the maximum length of thread is equal to 2.5 times the diameter (or thereabouts). ‘Socket,’ refers to the hexagon shaped indentation found on the top of the fasteners’ head. Here, you can use a hexagon key (Allen Key) to tighten and loosen the fastener. 'Cap' refers to the cylindrical shaped head.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.



M14 Cap Head, Allen/ Hexagon Socket Screw/ Bolt, High Tensile Steel, Grade 12.9, Self Colour lengths available

(FT - Fully Threaded, PT - Partially Threaded)

M14-2.00x90 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x100 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x110 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x120 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x130 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x140 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x150 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x160 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x170 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x180 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x190 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x200 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x220 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x240 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x280 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR
M14-2.00x300 MM,(PT) SOCKET HEAD CAP SCREW 12.9 COARSE ISO 4762 / DIN 912 SELF COLOUR





FIXABALL – Specialist Fixings and Fasteners Suppliers

Hexagon/ Allen Key Sizes

METRIC – Allen Socket, Cap Head, Screw Bolts

Allen Socket, Cap Head Screw Size Diameter

Allen/ Hex/ Hexagon Key Required to tighten and loosen

M14

12



Material: High Tensile (12.9 Grade) - Plain/ Self Colour.

Grade 12.9 steel has a higher carbon content and is therefore stiffer and harder than your regular 8.8 high tensile steel. Self-colour fasteners tend to be oiled or greased to prolong their performance and prevent oxidisation/ rusting.

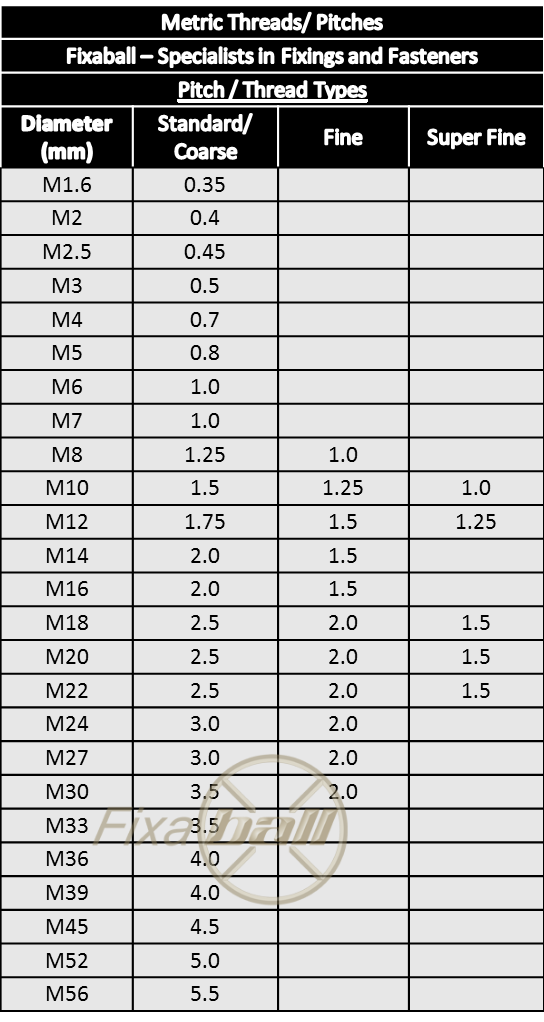

Metric Coarse threads are in millimetre (mm) units and were developed to simplify the imperial systems. A coarse thread has less helical coils per mm and is used for heavier/ higher torque loads. Coarse threads are the, 'normal', most common versions.

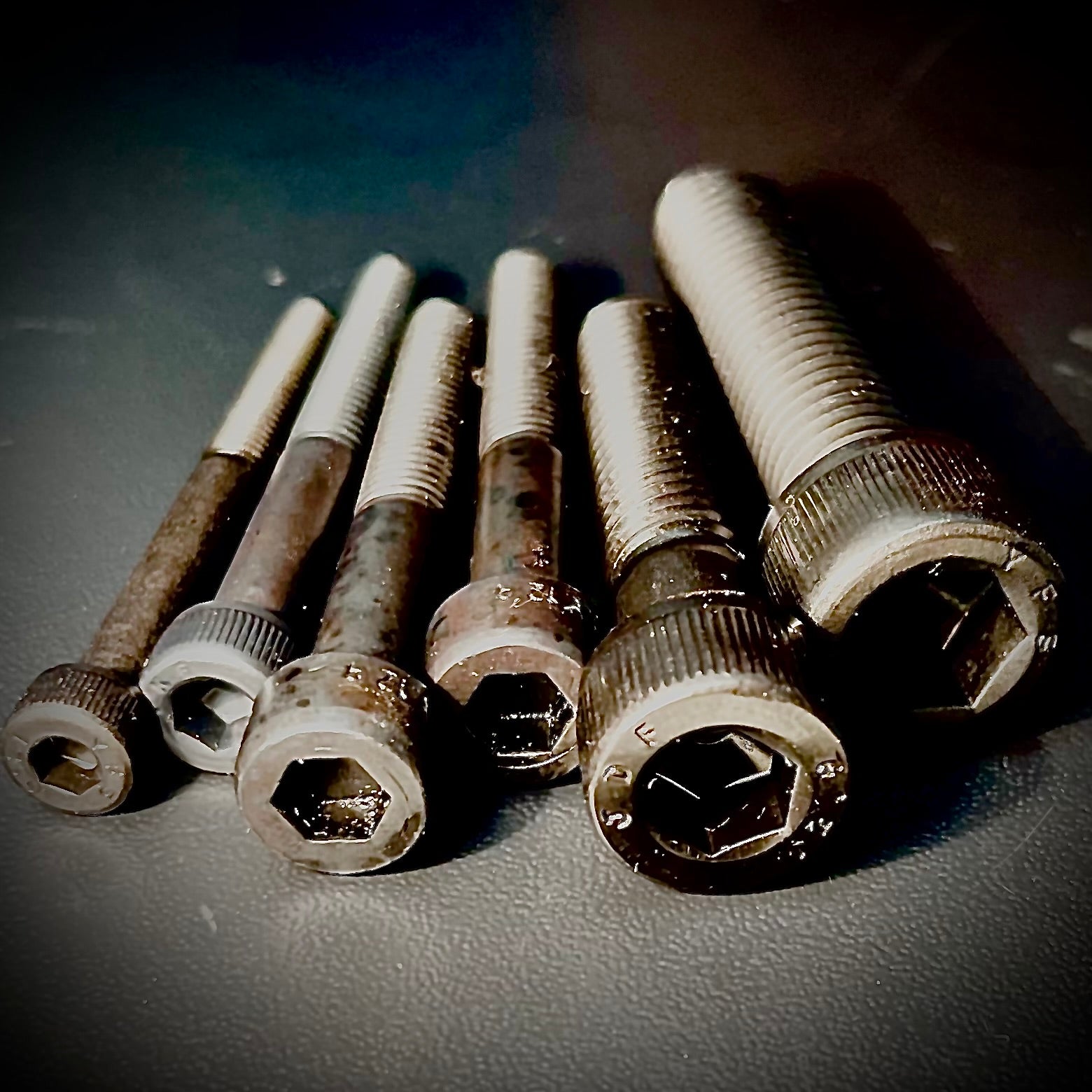

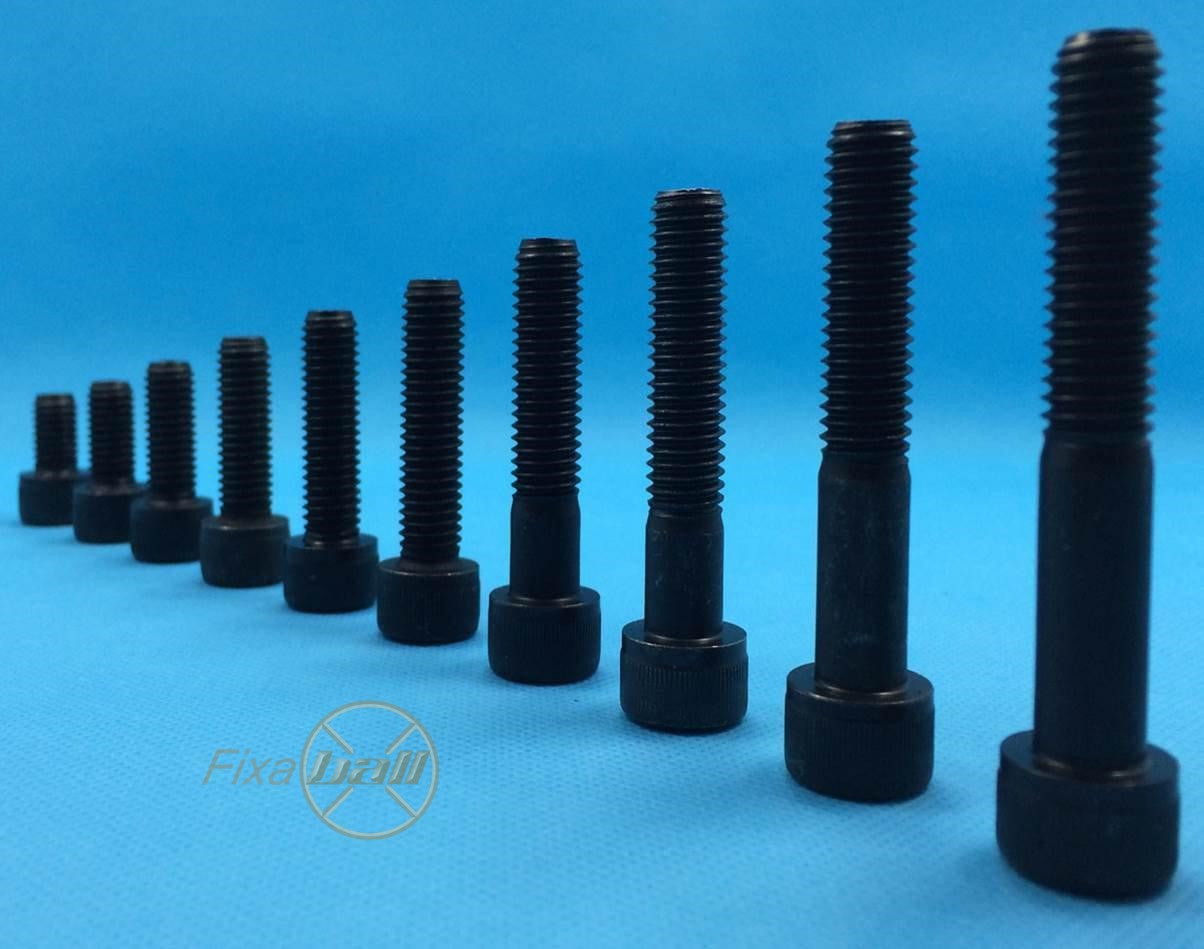

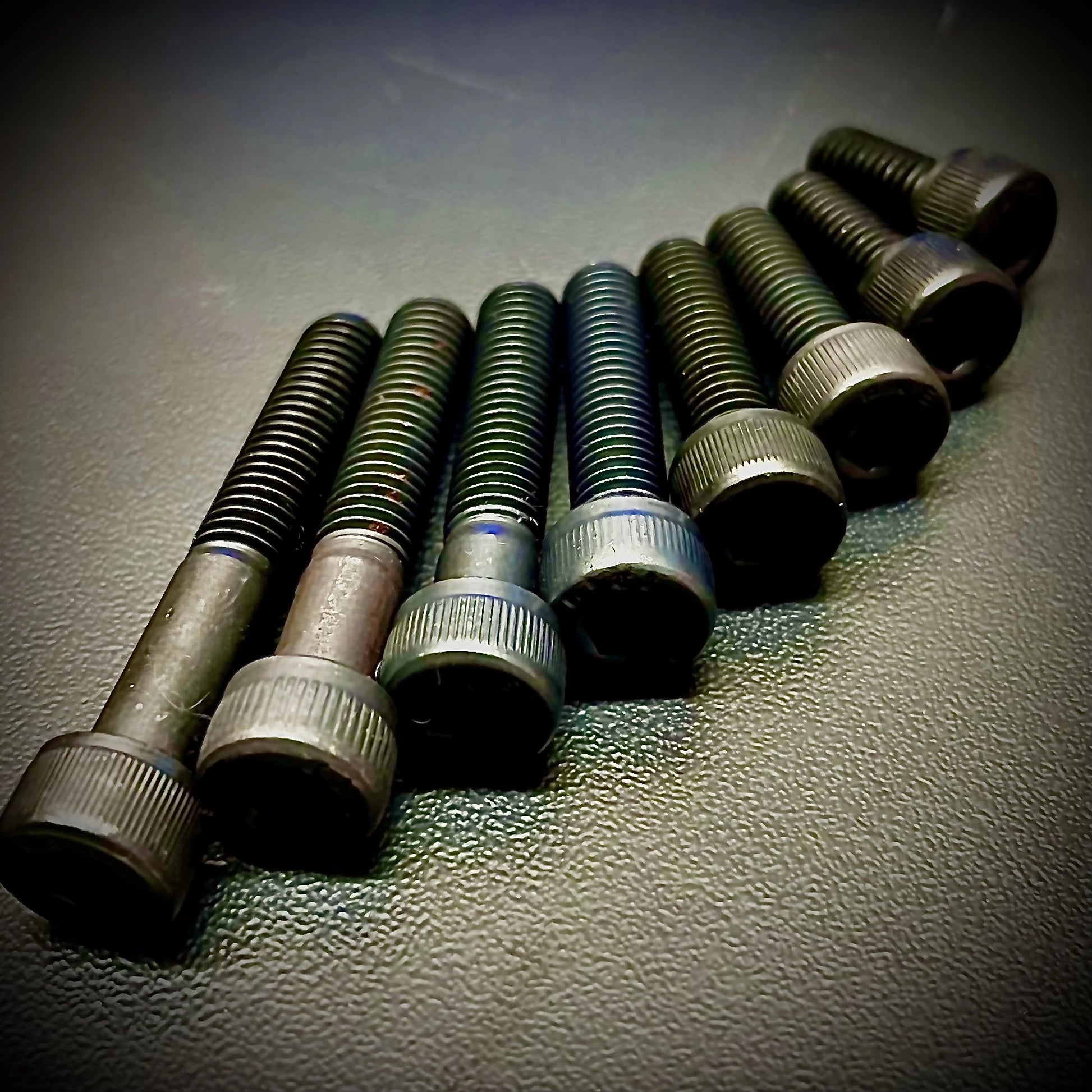

 Image is for illustrative purposes only.
