UNF, Hex-Bolt
UNF 5/16" Hex Bolt Set Screws High Tensile 8.8 Self Colour Black
UNF 5/16" Hex Bolt Set Screws High Tensile 8.8 Self Colour Black
No se pudo cargar la disponibilidad de retiro
Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.
UNF 5/16", Fully Threaded Hex-Sets and Partially Threaded Hex Bolts, High Tensile (5/ 8.8), Self-Colour/ Black
UNF 5/16" has 24 T. P. I (Threads Per Inch)
Fixaball sells lengths of UNF, 5/16", Hex Bolts and Hex Sets.
Hexagon Head Bolt
Bolt is the term used for a partially threaded fastener (bolt with shoulder/ part plain shank bolt), with a head; designed to be used with a nut and washer.
Orders placed before 2pm are dispatched same day (Mon-Fri) and free shipping is Royal Mail, 2nd Class (2-5 days). Postage upgrades available at checkout.
Please make your, 'No. of Items in Pack', 'Length' and, 'Quantity' of packs selection from the drop down menus.
UNF 5/16" has 24 T. P. I (Threads Per Inch) Sizes Available
(FT - Fully Threaded, PT - Partially Threaded)
5/16"-24x3/4",(FT) HEXAGON SET SCREWS GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x1",(FT) HEXAGON SET SCREWS GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x1 1/4",(FT) HEXAGON SET SCREWS GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x1 1/2",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x1 3/4",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x2",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x2 1/4",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x2 1/2",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x3",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x3 1/2",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x3 3/4",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x4",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x4 1/2",(PT) HEXAGON BOLT GRADE 5 UNF MED. CARBON SELF COLOUR
5/16"-24x7.1/4”",(PT) HEXAGON BOLT GRADE 8 UNFANSI B18.2.1 SAE 8 SELF COLOUR
|
FIXABALL – Specialist Fixings and Fasteners Suppliers UNC 5/16” Hex Bolts and Hex Sets |
||
|
Length |
Type of Fastener |
Threads Per Inch (T.P.I) |
| 1/2" | Hex Set (FT) | |
| 1" | Hex Set (FT) | |
|
1.1/4” |
Hex Set (FT) |
18 T.P.I |
|
1.1/2” |
Hex Bolt (FT) |
|
| 1.3/4" | Hex Bolt (PT) | |
|
2” |
Hex Bolt (PT) |
|
|
2.1/4” |
Hex Bolt (PT) |
|
|
2.1/2” |
Hex Bolt (PT) |
|
|
3.1/4” |
Hex Bolt (PT) |
|
|
3.1/2” |
Hex Bolt (PT) |
|
|
4” |
Hex Bolt (PT) |
|
|
4.1/2” |
Hex Bolt (PT) |
|
|
5” |
Hex Bolt (PT) |
|
|
5.1/2” |
Hex Bolt (PT) |
|
|
6” |
Hex Bolt (PT) |
|
|
7” |
Hex Bolt (PT) |
|
High Tensile, UNC Hex Bolts and Hex Sets.
UNC and UNF high tensile standard is marked with an, '5'. This is comparable with Metric, High Tensile - 8.8.
Hex Bolt vs Hex Set Screw
A Hex Bolt is the term used for a partially threaded fastener, with a hexagon head; designed to be used with a nut and washer. A Hex Set (Screw Bolt) is the same, except it is fully threaded. A screw screws into something, a bolt joins several things together from both sides of materials joined. A screw is fully threaded from underneath the head and a bolt is partially threaded (has a part-plain shank/ shoulder).
UNIFIED THREAD STANDARDS
Thread standards agreed upon by standard bodies of Canada, the United Kingdom, and the United States.
Unified National (UN) thread form with a rounded root contour, applies only to external threads. (The UN thread form has a flat, or optionally, a rounded root contour.) The majority of fasteners with a Unified thread form (UNC, UNF) have a rounded root contour i.e. are UNR threads.
Unified National Fine (UNF) is a thread form with a 60 degree flank angle rounded roots and flat crests. For a given diameter it has a smaller thread pitch than an equivalent diameter UNC thread.

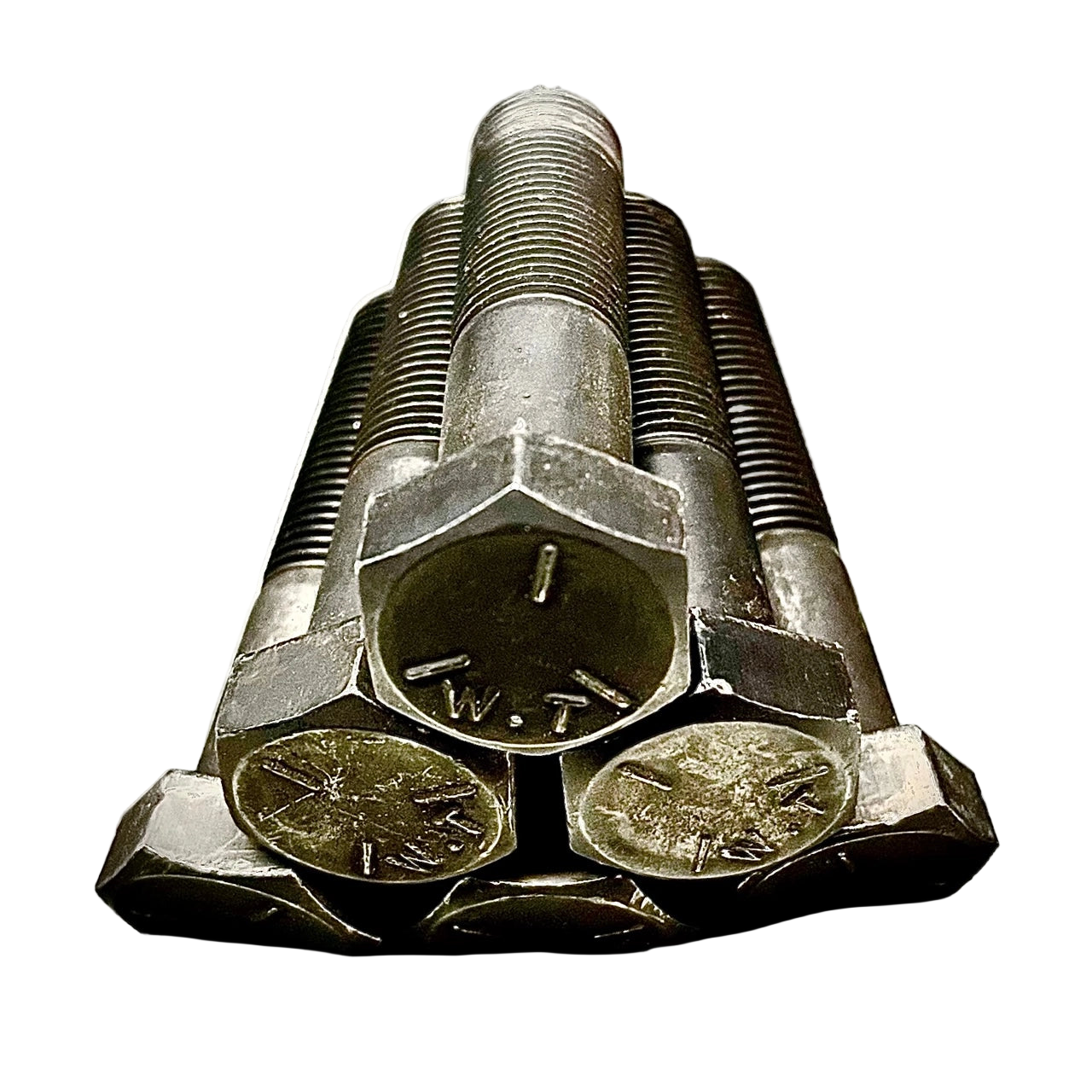

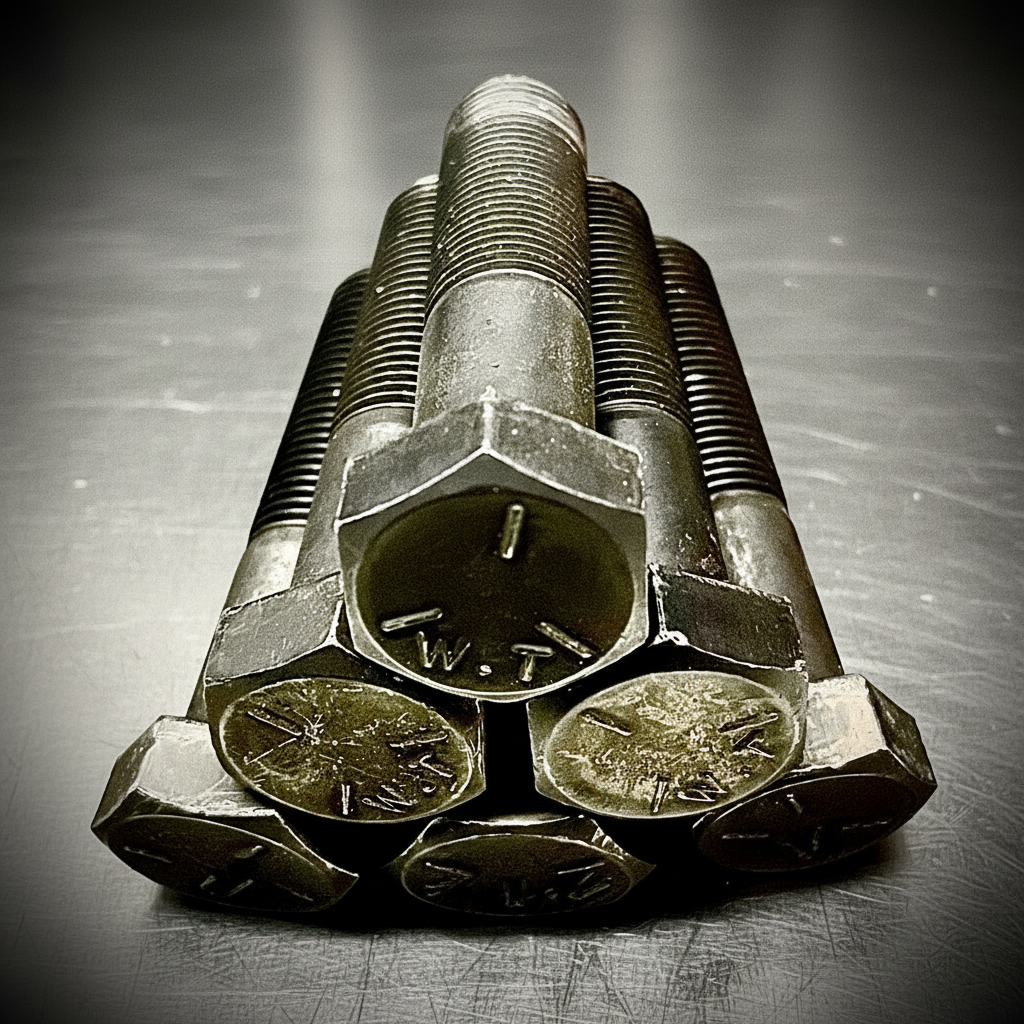

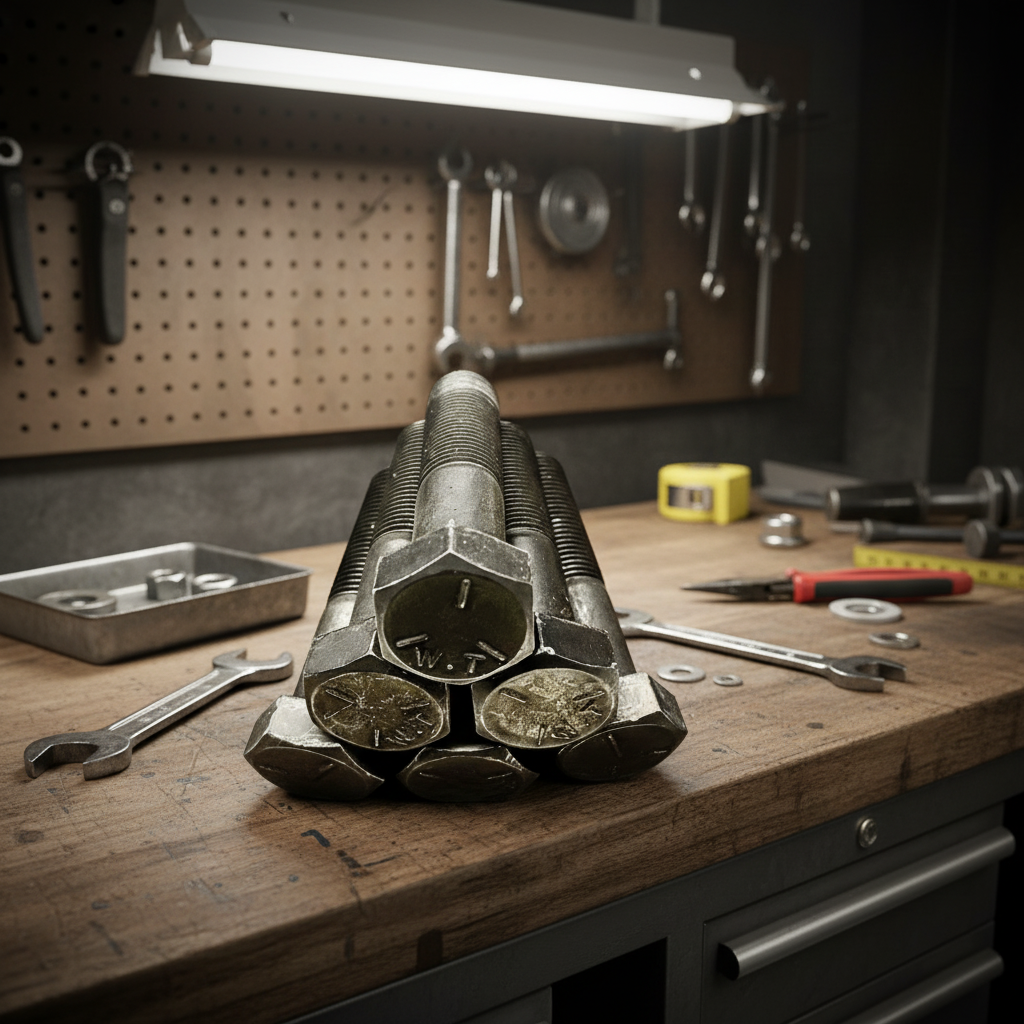

Images are for illustration only
