Projecting Anchor Bolt

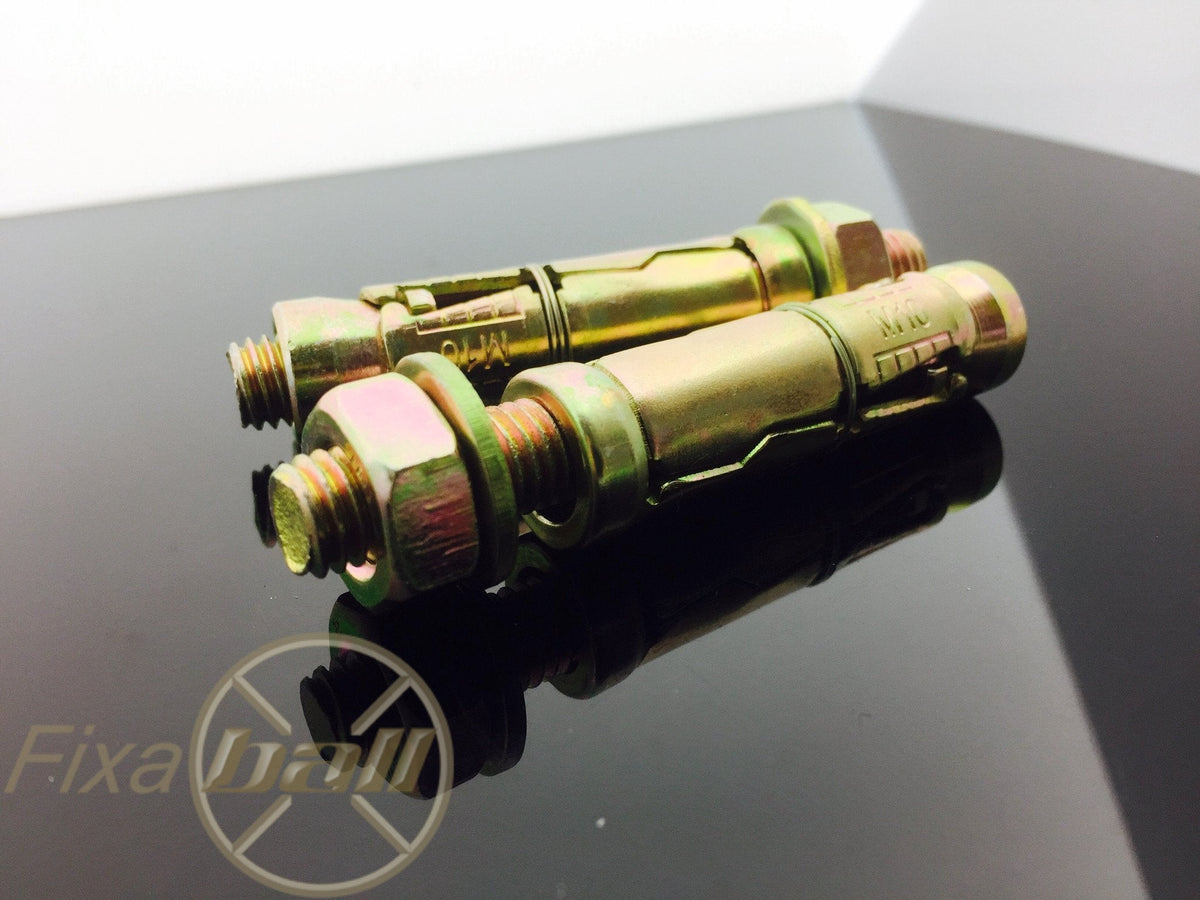

M6 Projecting Bolt Nut Stud Shield Masonry Concrete Anchor Zinc

M6 Projecting Bolt Nut Stud Shield Masonry Concrete Anchor Zinc

Precio habitual £5.10 GBP
Precio habitual £0.00 GBP Precio de oferta £5.10 GBP
Oferta Agotado
Impuestos incluidos. Los gastos de envío se calculan en la pantalla de pago.
No. of Items in Pack
Max Material Thickness

Postal Notification: Royal Mail 48 delivers between 2-3 days, 97% of the time. Choose 1st or tracked at checkout for time sensitive shipments.

M6, 6mm Diameter Stud, Projecting Bolt - Shield Anchor - Heavy Duty Fixing - Brick/ Masonry, Rawl/ Wall Bolt, Nut and Stud Type

Fixaball sells lengths of M6/ 6mm Diameter, 'nut type' projecting bolt, masonry anchors.

What is a projecting bolt and where are they most commonly applied?

Projecting Bolt, Masonry Shield Anchor is a heavy duty, builder’s masonry, expansion anchor, for fixing heavy materials and fixtures. They are most commonly used on walls as the pertruding stad helps to hang items in situ.

They can be used in concrete, brick/ block and non-porous stone.

It comprises of a 3 part shield, threaded bar (high tensile - grade 8.8), nut and washer. It is an expansion anchor that pushes outwards at 3 points as the nut is tightened.



Orders placed before 2pm are dispatched same day (Mon-Fri).

Standard, Free Delivery is Royal Mail, 2nd Class (2-5 days, most likely 2 days). For a faster delivery time, select 1st class or courier at checkout.

Please make your 'No. of Items in Pack', 'Length' and 'Quantity' of packs, selection from the drop down menus.


Max joining thicknesses available: 10mm, 25mm, 50mm.

Application

  • Projecting bolts are used when material/ fixtures need to be held in place during installation.
  • The projecting threaded bar is used as a locator.
  • Care must be taken not to damage the thread during installation.
  • Shield anchors have an added advantage of being able to function with holes that vary in size/ quality.
  • A shield anchor will only ever be as good as the grade of material that it’s being fixed to.

Projecting Bolt Installation

Drill the correct sized hole, clear/ clean the hole (brush and air pump), place the anchor in the hole, set the fixture/ material in place, fix by tightening the nut.

Table: Shows typical masonry shield anchor properties

All measurements in Metric - mm

Thead Diameter

Hole Diameter

Hole Depth

Fixture/ Material Clearance Hole

Center Spacing Between Holes

Minimum Distance From Edge of Material

Tensile/ Pull Load

k/N (tonnes)

Shear Load k/N (tonnes)

Torque to tighten Nm

M6

12

50

7 - 8

120

80

3.5

2.1

6.5

All specifications are true with correct installation



Image is for illustrative purposes only.
